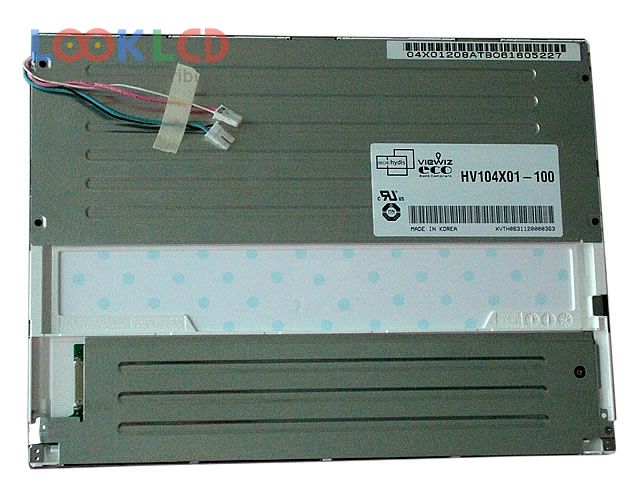

| Nombor Bahagian | HV104X01-100 |
| Jenama | HYDIS |
| Saiz | 10.4 |
| Permohonan | GM |
| Resolusi | 1024×768 |
| Komposisi | LCM |
| Kecerahan | 350 |
| CR | 500:1 |
| Warna | 262K |
| Lampu latar | CCFL |
| Antara muka | LVDS |
| jenama panel | BOE HYDIS |
| model panel | HV104X01-100 |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 10.4 inch |
| resolusi | 1024(RGB)×768 , XGA |
| mod paparan | FFS, Normally Black, Transmissive |
| kawasan aktif | 210.4×157.8 mm |
| garis besar | 237.8×178.3 mm |
| permukaan | Antiglare (Haze 25%), Hard coating (3H) |
| kecerahan | 350 cd/m² (Typ.) |
| nisbah kontras | 500:1 (Typ.) |
| warna paparan | 262K (6-bit), CIE193140% |
| masa tindak balas | 40 (Typ.)(Tr+Td) |
| sudut pandangan | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| kekerapan | 60Hz |
| jenis lampu | 2 pcsCCFLWithout Driver |
| antara muka isyarat | LVDS (1 ch, 6-bit), 14 pins |
| voltan masukan | 3.3V (Typ.) |
| permohonan | GM |
