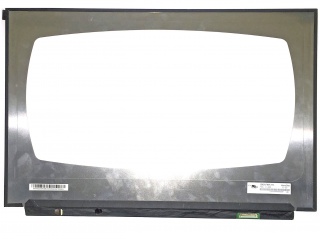

| Nombor Bahagian | HSD170PUW1-B00 |
| Jenama | HannStar |
| Saiz | 17.0 |
| Permohonan | Laptop |
| Resolusi | 1920×1200 |
| Komposisi | a-Si TFT-LCD, LCM |
| Kecerahan | |
| CR | 1000:1 |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antara muka | eDP |
| jenama | HannStar |
| model | HSD170PUW1-B00 |
| saiz pepenjuru | 17.0 inch |
| menaip | a-Si TFT-LCD, LCM |
| format piksel | 1920(RGB)×1200 [WUXGA] 133PPI |
| konfigurasi | RGB Vertical Stripe |
| kawasan aktif | 365.184(H)×228.24(V) mm |
| garis besar malap. | 373.248(H)×241.38(V) ×6(D) mm |
| kawasan bezel | - |
| rawatan | Antiglare |
| kecerahan | 270 cd/m² (Typ.) |
| nisbah kontras | 1000:1 (Typ.) (TM) |
| arah pandang | Symmetry |
| masa tindak balas | 25 (Typ.)(Tr+Td) |
| sudut pandangan | 80/80/80/80 (Typ.)(CR≥10) |
| mod operasi | IPS Pro, Normally Black, Transmissive |
| warna sokongan | 16.7M 95% DCI-P3 |
| sumber cahaya | WLED , 15K hours , With LED Driver |
| gaya bentuk | - |
| direka untuk | Laptop |
| kadar bingkai | 60Hz |
| panel sentuh | Without |
| jenis antara muka | eDP (2 Lanes) , eDP1.3 , 30 pins Connector |
| bekalan kuasa | 3.3V (Typ.) |
| persekitaran | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
