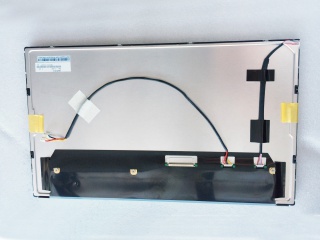

| Nombor Bahagian | HSD156JUW1-A00 |
| Jenama | HannStar |
| Saiz | 15.6 |
| Permohonan | Industrial Outdoor H |
| Resolusi | 1920×1080 |
| Komposisi | LCM , a-Si TFT-LCD |
| Kecerahan | |
| CR | 1000:1 |
| Warna | 16.7M |
| Lampu latar | 8S6P |
| Antara muka | LVDS |
| pengilang | HannStar |
| nama model | HSD156JUW1-A00 |
| saiz skrin | 15.6 inch |
| jenis skrin | LCM , a-Si TFT-LCD |
| nombor piksel | 1920(RGB)×1080 (FHD) 141PPI |
| susunan | RGB Vertical Stripe |
| kawasan aktif (mm) | 344.16 × 193.59 (H×V) |
| garis besar (mm) | 363.8 × 215.9 × 12 (H×V×D) |
| kawasan bezel (mm) | 346 × 195.4 (H×V) |
| rawatan | Antiglare |
| kecerahan | 850 cd/m² (Typ.) |
| nisbah kontras | 1000 : 1 (Typ.) (TM) |
| sudut pandangan | 85/85/85/85 (Typ.)(CR≥10) |
| tindak balas | 18/17 (Typ.)(Tr/Td) ms |
| pandangan yang baik di | Symmetry |
| mod kerja | IPS Pro, Normally Black, Transmissive |
| kedalaman warna | 16.7M 70% NTSC |
| lampu latar | 8S6P WLED , 50K hours , With LED Driver |
| jisim | TBD |
| digunakan untuk | Industrial Outdoor High Brightness Automotive Display |
| kadar segar semula | 60Hz |
| skrin sentuh | Without |
| jenis isyarat | LVDS (2 ch, 8-bit) , 30 pins Connector |
| bekalan voltan | 5.0V (Typ.) |
| maks. penilaian | Storage Temp.: -40 ~ 90 °C Operating Temp.: -30 ~ 85 °C ; Vibration Level: 2.9G (28.4 m/s²) |
| B156XW02 V0 | AUO | 15.6 | 1366×768 |
| LP156WF1-TLC1 | LG Display | 15.6 | 1920×1080 |
| LP156WH2-TLQB | LG Display | 15.6 | 1366×768 |
| LP156WH8-TLA1 | LG Display | 15.6 | 1366×768 |
| LP156WHB-TLA1 | LG Display | 15.6 | 1366×768 |
| LP156WHU-TLAA | LG Display | 15.6 | 1366×768 |
| LTN156AT01-B01 | Samsung | 15.6 | 1366×768 |
| LTN156AT05-H01 | Samsung | 15.6 | 1366×768 |
| LTN156AT20-P01 | Samsung | 15.6 | 1366×768 |
| NV156FHM-N41 | BOE | 15.6 | 1920×1080 |
