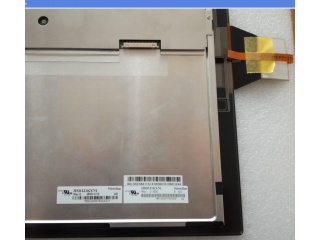

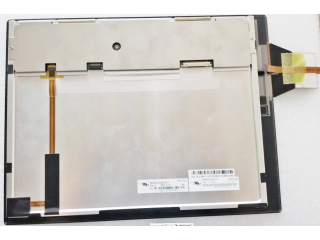

| Nombor Bahagian | HSD121KXN1-B00-C10 |
| Jenama | HannStar |
| Saiz | 12.1 |
| Permohonan | Automotive Display |
| Resolusi | 1024×768 |
| Komposisi | a-Si TFT-LCD , LCM |
| Kecerahan | |
| CR | 900:1 |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antara muka | |
| jenama panel | HannStar |
| saiz panel | 12.1" |
| resolusi | 1024(RGB)×768, XGA, 105PPI |
| kawasan paparan | 245.76(W)×184.32(H) mm |
| kecerahan | 600 cd/m² (Typ.) |
| sudut pandangan | 85/85/85/85 (Typ.)(CR≥10) |
| pandangan terbaik pada | Symmetry |
| warna paparan | 16.7M 72% NTSC |
| kekerapan | 60Hz |
| berat badan | - |
| model panel | HSD121KXN1-B00-C10 |
| jenis panel | a-Si TFT-LCD , LCM |
| format piksel | RGB Vertical Stripe |
| pembukaan bezel | - |
| nisbah kontras | 900:1 (Typ.) (TM) |
| mod paparan | IPS Pro, Normally Black, Transmissive |
| masa tindak balas | 30 (Typ.)(Tr+Td) |
| jenis lampu | WLED , 30K hours , With LED Driver |
| skrin sentuh | Embeded Touch |
| permohonan | Automotive Display |
