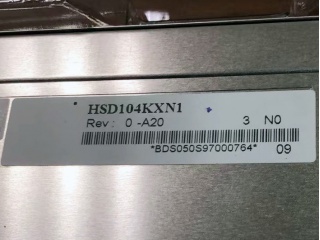

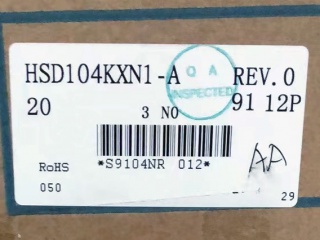

| Nombor Bahagian | HSD104KXN1-A20 |
| Jenama | HannStar |
| Saiz | 10.4 |
| Permohonan | Automotive Display |
| Resolusi | 1024×768 |
| Komposisi | LCM, a-Si TFT-LCD |
| Kecerahan | |
| CR | 900:1 |
| Warna | 262K/16.2M |
| Lampu latar | WLED |
| Antara muka | |
| pengilang | HannStar |
| nama model | HSD104KXN1-A20 |
| saiz skrin | 10.4 inch |
| jenis skrin | LCM, a-Si TFT-LCD |
| nombor piksel | 1024(RGB)×768 (XGA) 123PPI |
| susunan | RGB Vertical Stripe |
| kawasan aktif (mm) | 211.2 × 158.4 (H×V) |
| garis besar (mm) | - |
| kecerahan | - |
| nisbah kontras | 900 : 1 (Typ.) (TM) |
| sudut pandangan | 85/85/85/85 (Typ.)(CR≥10) |
| tindak balas | - |
| pandangan yang baik di | Symmetry |
| mod kerja | IPS Pro, Normally Black, Transmissive |
| kedalaman warna | 262K/16.2M |
| lampu latar | WLED |
| jisim | - |
| digunakan untuk | Automotive Display |
| kadar segar semula | 60Hz |
| skrin sentuh | Without |
| Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
