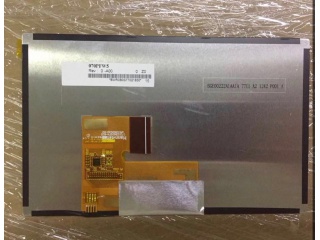

| Nombor Bahagian | HSD070PFW5-A00 |
| Jenama | HannStar |
| Saiz | 7.0 |
| Permohonan | Pad & Tablet |
| Resolusi | 1024×600 |
| Komposisi | LCM , a-Si TFT-LCD |
| Kecerahan | |
| CR | 1000:1 |
| Warna | 16.7M |
| Lampu latar | 3S7P |
| Antara muka | MIPI |
| pengilang | HannStar |
| nama model | HSD070PFW5-A00 |
| saiz skrin | 7.0 inch |
| jenis skrin | LCM , a-Si TFT-LCD |
| nombor piksel | 1024(RGB)×600 (WSVGA) 169PPI |
| susunan | RGB Vertical Stripe |
| kawasan aktif (mm) | 153.6 × 90 (H×V) |
| garis besar (mm) | 161.16 × 100.97 × 5.04 (H×V×D) |
| kawasan bezel (mm) | - |
| rawatan | Hard coating |
| kecerahan | 550 cd/m² (Typ.) |
| nisbah kontras | 1000 : 1 (Typ.) (TM) |
| sudut pandangan | 85/85/85/85 (Typ.)(CR≥10) |
| tindak balas | 13/15 (Typ.)(Tr/Td) ms |
| pandangan yang baik di | Symmetry |
| mod kerja | IPS Pro, Normally Black, Transmissive |
| kedalaman warna | 16.7M 50% NTSC |
| lampu latar | 3S7P WLED , 10K hours , With LED Driver |
| jisim | 75.0/85.0g (Typ./Max.) |
| digunakan untuk | Pad & Tablet |
| kadar segar semula | 60Hz |
| skrin sentuh | Without |
| jenis isyarat | MIPI (4 data lanes) , 40 pins Connector |
| bekalan voltan | 1.8/3.3/10.7/17/-10V (Typ.)(VDD1/VDD2/AVDD/VGH/VGL) |
| maks. penilaian | Storage Temp.: -20 ~ 65 °C Operating Temp.: -10 ~ 60 °C |
