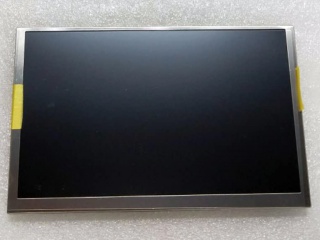

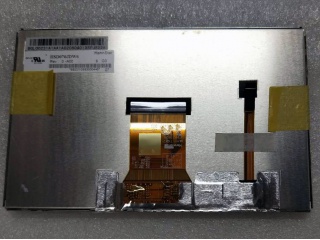

| Nombor Bahagian | HSD070JDW6-A00 |
| Jenama | HannStar |
| Saiz | 7.0 |
| Permohonan | Automotive Display |
| Resolusi | 800×480 |
| Komposisi | a-Si TFT-LCD , LCM |
| Kecerahan | |
| CR | 1000:1 |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antara muka | |
| jenama | HannStar |
| saiz pepenjuru | 7.0 inch |
| format piksel | 800(RGB)×480 [WVGA] 133PPI |
| kawasan aktif | 152.4(H)×91.44(V) mm |
| kawasan bezel | 154.4(H)×93.44(V) mm |
| kecerahan | 1000 cd/m² (Typ.) |
| arah pandang | Symmetry |
| sudut pandangan | 85/85/85/85 (Typ.)(CR≥10) |
| warna sokongan | 16.7M 70% NTSC |
| berat badan | 153±10g |
| kadar bingkai | 60Hz |
| model | HSD070JDW6-A00 |
| menaip | a-Si TFT-LCD , LCM |
| konfigurasi | RGB Vertical Stripe |
| garis besar malap. | 165(H)×104.07(V) ×8.5(D) mm |
| rawatan | Antiglare, Hard coating (3H) |
| nisbah kontras | 1000:1 (Typ.) (TM) |
| masa tindak balas | 30 (Typ.)(Tr+Td) |
| mod operasi | IPS Pro, Normally Black, Transmissive |
| sumber cahaya | WLED [7S4P] , 30K hours , W/O Driver |
| direka untuk | Automotive Display |
| panel sentuh | Without |
| A070FW03 V3 | AUO | 7.0 | 480×234 |
| AA070ME01 | Mitsubishi | 7.0 | 800×480 |
| AC070MD01 | Mitsubishi | 7.0 | 800×480 |
| CLAA070NJ01CW | CPT | 7.0 | 1024×600 |
| LB070WQ7-TD02 | LG Display | 7.0 | 480×234 |
| LB070WV4-SD01 | LG Display | 7.0 | 800×480 |
| LB070WV4-TD02 | LG Display | 7.0 | 800×480 |
| LQ070Y5DR04 | SHARP | 7.0 | 800×480 |
| TD070WGCB2 | TPO | 7.0 | 854×480 |
| TX18D37VM0AQA | KOE | 7.0 | 800×480 |
