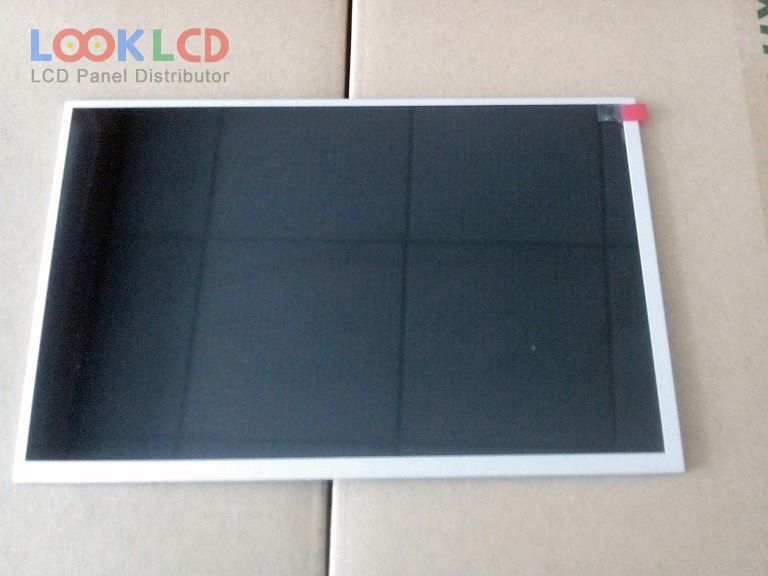

| Nombor Bahagian | HJ101NA-02C |
| Jenama | Innolux |
| Saiz | 10.1 |
| Permohonan | PAD |
| Resolusi | 1280×800 |
| Komposisi | LCM |
| Kecerahan | 250 |
| CR | 700:1 |
| Warna | 262K/16.7M |
| Lampu latar | WLED |
| Antara muka | LVDS |
| jenama panel | CHIMEI INNOLUX |
| model panel | HJ101NA-02C |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 10.1 inch |
| resolusi | 1280(RGB)×800 , WXGA |
| mod paparan | TN, Normally White, Transmissive |
| kawasan aktif | 216.96×135.6 mm |
| garis besar | 229.46×149.1×5.5 mm |
| permukaan | Glare (Haze 0%) |
| kecerahan | 250 cd/m² (Typ.) |
| nisbah kontras | 700:1 (Typ.) |
| warna paparan | 262K/16.7M (6-bit / 6-bit + Hi-FRC) |
| masa tindak balas | 10/15 (Typ.)(Tr/Td) |
| sudut pandangan | 75/75/75/75 (Typ.)(CR≥10)(L/R/U/D) |
| kekerapan | 60Hz |
| jenis lampu | WLEDWithout Driver |
| antara muka isyarat | LVDS (1 ch, 6/8-bit), 40 pins |
| voltan masukan | 3.3/11.0/20.0/-6.8V (Typ.)(DVDD/AVDD/VGH/VHL) |
| permohonan | PAD |
