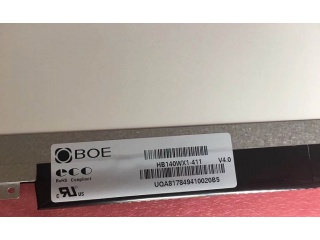

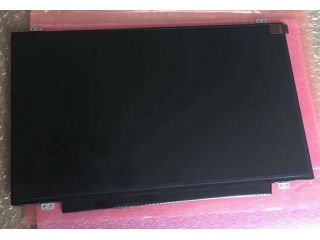

| Nombor Bahagian | HB140WX1-411 |
| Jenama | BOE |
| Saiz | 14.0 |
| Permohonan | Laptop |
| Resolusi | 1366×768 |
| Komposisi | a-Si TFT-LCD, LCM |
| Kecerahan | |
| CR | 600:1 |
| Warna | 262K |
| Lampu latar | 9S4P |
| Antara muka | eDP |
| jenama panel | BOE |
| model panel | HB140WX1-411 (BOE0600) |
| saiz panel | 14.0" |
| jenis panel | a-Si TFT-LCD, LCM |
| resolusi | 1366(RGB)×768, WXGA, 112PPI |
| format piksel | RGB Vertical Stripe |
| kawasan paparan | 309.399(W)×173.952(H) mm |
| pembukaan bezel | - |
| saiz garis besar | 320.4(W)×205.1(H) ×3.6(D) mm |
| permukaan | Antiglare |
| kecerahan | 220 cd/m² (Typ.) |
| nisbah kontras | 600:1 (Typ.) (TM) |
| sudut pandangan | 45/45/20/40 (Typ.)(CR≥10) |
| mod paparan | TN, Normally White, Transmissive |
| pandangan terbaik pada | 6 o'clock |
| masa tindak balas | 8 (Typ.)(Tr+Td) |
| warna paparan | 262K 45% NTSC |
| jenis lampu | 9S4P WLED , 15K hours , With LED Driver |
| kekerapan | 60Hz |
| skrin sentuh | Without |
| gaya bentuk | Flat (PCBA Flat, T3.4~4.0mm) |
| permohonan | Laptop |
| antara muka isyarat | eDP (1 Lane) , HBR1 (2.7G/lane) , 30 pins Connector |
| voltan masukan | 3.3V (Typ.) |
| persekitaran | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
