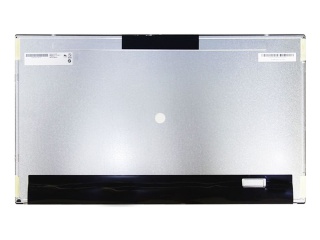

| Nombor Bahagian | G238HAN01.1 |
| Jenama | AUO |
| Saiz | 23.8 |
| Permohonan | Industrial Medical I |
| Resolusi | 1920×1080 |
| Komposisi | LCM , a-Si TFT-LCD |
| Kecerahan | |
| CR | 1000:1 |
| Warna | 16.7M |
| Lampu latar | 18S4P |
| Antara muka | LVDS |
| pengilang | AUO |
| saiz skrin | 23.8 inch |
| nombor piksel | 1920(RGB)×1080 (FHD) 92PPI |
| kawasan aktif (mm) | 527.04 × 296.46 (H×V) |
| kawasan bezel (mm) | 530.2 × 299.6 (H×V) |
| kecerahan | 400 cd/m² (Typ.) |
| sudut pandangan | 89/89/89/89 (Typ.)(CR≥10) |
| pandangan yang baik di | Symmetry |
| kedalaman warna | 16.7M 70% NTSC |
| jisim | 2.30Kgs (Typ.) |
| kadar segar semula | 60Hz |
| jenis isyarat | LVDS (2 ch, 8-bit) , 30 pins Connector |
| bekalan voltan | 5.0V (Typ.) |
| maks. penilaian | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| nama model | G238HAN01.1 |
| jenis skrin | LCM , a-Si TFT-LCD |
| susunan | RGB Vertical Stripe |
| garis besar (mm) | 543 × 317.4 × 11.65 (H×V×D) |
| rawatan | Antiglare, Hard coating (3H) |
| nisbah kontras | 1000 : 1 (Typ.) (TM) |
| tindak balas | 14 (Typ.)(G to G) ms |
| mod kerja | AHVA, Normally Black, Transmissive |
| lampu latar | 18S4P WLED , 50K hours , No Driver |
| digunakan untuk | Industrial Medical Imaging |
| skrin sentuh | Without |
