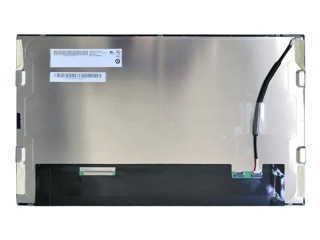

| Nombor Bahagian | G156HAN02.302 |
| Jenama | AUO |
| Saiz | 15.6 |
| Permohonan | Industrial Medical I |
| Resolusi | 1920×1080 |
| Komposisi | a-Si TFT-LCD , LCM |
| Kecerahan | |
| CR | 1000:1 |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antara muka | LVDS |
| jenama | AUO |
| saiz pepenjuru | 15.6 inch |
| format piksel | 1920(RGB)×1080 [FHD] 141PPI |
| kawasan aktif | 344.16(H)×193.59(V) mm |
| kawasan bezel | 347.06(H)×196.49(V) mm |
| kecerahan | 500 cd/m² (Typ.) |
| arah pandang | Symmetry |
| sudut pandangan | 89/89/89/89 (Typ.)(CR≥10) |
| warna sokongan | 16.7M 99% sRGB |
| berat badan | 600/660g (Typ./Max.) |
| kadar bingkai | 60Hz |
| jenis antara muka | LVDS (2 ch, 8-bit) , 30 pins Connector |
| bekalan kuasa | 3.3V (Typ.) |
| persekitaran | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -20 ~ 70 °C |
| model | G156HAN02.302 |
| menaip | a-Si TFT-LCD , LCM |
| konfigurasi | RGB Vertical Stripe |
| garis besar malap. | 363.8(H)×215.9(V) ×9.3(D) mm |
| rawatan | Antiglare, Hard coating (3H) |
| nisbah kontras | 1000:1 (Typ.) (TM) |
| masa tindak balas | 25 (Typ.)(Tr+Td) |
| mod operasi | AHVA, Normally Black, Transmissive |
| sumber cahaya | WLED , 50K hours , With LED Driver |
| direka untuk | Industrial Medical Imaging |
| panel sentuh | Without |
| B156XW04 V0 | AUO | 15.6 | 1366×768 |
| G156HAN01.0 | AUO | 15.6 | 1920×1080 |
| LP156WH1-TLC2 | LG Display | 15.6 | 1366×768 |
| LP156WH4-TLA1 | LG Display | 15.6 | 1366×768 |
| LP156WHB-TPA1 | LG Display | 15.6 | 1366×768 |
| LTN156AT17-D02 | Samsung | 15.6 | 1366×768 |
| LTN156AT32-401 | Samsung | 15.6 | 1366×768 |
| N156B3-L02 | Innolux | 15.6 | 1366×768 |
| N156HGE-LA1 | Innolux | 15.6 | 1920×1080 |
| N156HGE-LG1 | Innolux | 15.6 | 1920×1080 |
