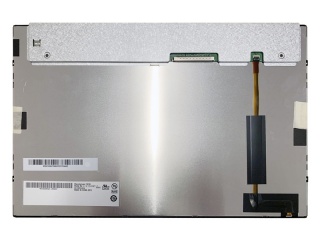

| Nombor Bahagian | G121EAN01.4 |
| Jenama | AUO |
| Saiz | 12.1 |
| Permohonan | Industrial Medical I |
| Resolusi | 1280×800 |
| Komposisi | LCM , a-Si TFT-LCD |
| Kecerahan | |
| CR | 1000:1 |
| Warna | 262K/16.2M |
| Lampu latar | WLED |
| Antara muka | LVDS |
| pengilang | AUO |
| saiz skrin | 12.1 inch |
| nombor piksel | 1280(RGB)×800 (WXGA) 124PPI |
| kawasan aktif (mm) | 261.12 × 163.2 (H×V) |
| kawasan bezel (mm) | 264.22 × 168.12 (H×V) |
| kecerahan | 300 cd/m² (Typ.) |
| sudut pandangan | 89/89/89/89 (Typ.)(CR≥10) |
| pandangan yang baik di | Symmetry |
| kedalaman warna | 262K/16.2M 99% sRGB |
| jisim | 480g (Max.) |
| kadar segar semula | 60Hz |
| jenis isyarat | LVDS (1 ch, 6/8-bit) , 30 pins Connector |
| bekalan voltan | 3.3V (Typ.) |
| maks. penilaian | Storage Temp.: -30 ~ 85 °C Operating Temp.: -30 ~ 85 °C |
| nama model | G121EAN01.4 |
| jenis skrin | LCM , a-Si TFT-LCD |
| susunan | RGB Vertical Stripe |
| garis besar (mm) | 278 × 184 × 9.64 (H×V×D) |
| rawatan | Antiglare, Hard coating (3H) |
| nisbah kontras | 1000 : 1 (Typ.) (TM) |
| tindak balas | 25 (Typ.)(Tr+Td) ms |
| mod kerja | AHVA, Normally Black, Transmissive |
| lampu latar | WLED , 30K hours , With LED Driver |
| digunakan untuk | Industrial Medical Imaging |
| skrin sentuh | Without |
