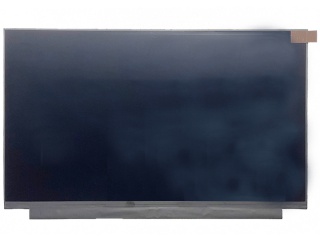

| Nombor Bahagian | EV133FHM-N40 |
| Jenama | BOE |
| Saiz | 13.3 |
| Permohonan | Laptop Medical Imagi |
| Resolusi | 1920×1080 |
| Komposisi | a-Si TFT-LCD, LCM |
| Kecerahan | |
| CR | 800:1 |
| Warna | 16.7M |
| Lampu latar | 9S4P |
| Antara muka | eDP |
| jenama panel | BOE |
| model panel | EV133FHM-N40 (BOE09E7) |
| saiz panel | 13.3" |
| jenis panel | a-Si TFT-LCD, LCM |
| resolusi | 1920(RGB)×1080, FHD, 166PPI |
| format piksel | RGB Vertical Stripe |
| kawasan paparan | 293.76(W)×165.24(H) mm |
| pembukaan bezel | - |
| saiz garis besar | 300.26(W)×187.75(H) mm |
| permukaan | Antiglare, Hard coating (3H) |
| kecerahan | 300 cd/m² (Typ.) |
| nisbah kontras | 800:1 (Typ.) (TM) |
| sudut pandangan | 85/85/85/85 (Typ.)(CR≥10) |
| mod paparan | ADS, Normally Black, Transmissive |
| pandangan terbaik pada | Symmetry |
| masa tindak balas | 30 (Typ.)(Tr+Td) |
| warna paparan | 16.7M 72% NTSC |
| jenis lampu | 9S4P WLED , 15K hours , With LED Driver |
| kekerapan | 60Hz |
| skrin sentuh | Without |
| gaya bentuk | Slim (PCBA Flat, T≤3.2mm) |
| permohonan | Laptop Medical Imaging |
| antara muka isyarat | eDP (2 Lanes) , eDP1.2 , HBR1 (2.7G/lane) , 30 pins Connector |
| voltan masukan | 3.3V (Typ.) |
| persekitaran | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| B133EW03 V0 | AUO | 13.3 | 1280×800 |
| G133I1-L01 | Innolux | 13.3 | 1280×800 |
| LP133WD1-SLA1 | LG Display | 13.3 | 1600×900 |
| LP133WX1-TLB1 | LG Display | 13.3 | 1280×800 |
| LP133WX1-TLN2 | LG Display | 13.3 | 1280×800 |
| LP133WX2-TLG1 | LG Display | 13.3 | 1280×800 |
| LQ133K1LD4B | SHARP | 13.3 | 1280×800 |
| LTN133AT23-B01 | Samsung | 13.3 | 1366×768 |
| N133HSE-EA1 | Innolux | 13.3 | 1920×1080 |
| NV133FHM-N43 | BOE | 13.3 | 1920×1080 |
