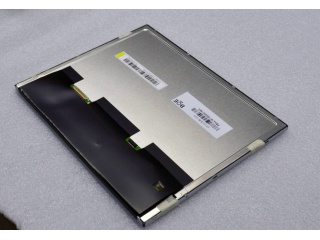

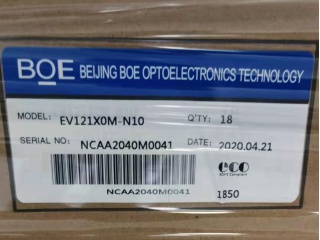

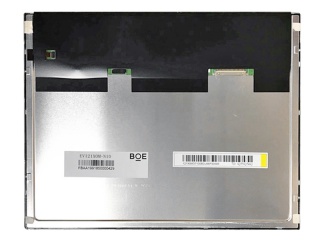

| Nombor Bahagian | EV121X0M-N10 |
| Jenama | BOE |
| Saiz | 12.1 |
| Permohonan | Industrial |
| Resolusi | 1024×768 |
| Komposisi | a-Si TFT-LCD , LCM |
| Kecerahan | |
| CR | 1200:1 |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antara muka | LVDS |
| jenama | BOE |
| saiz pepenjuru | 12.1 inch |
| format piksel | 1024(RGB)×768 [XGA] 105PPI |
| kawasan aktif | 245.76(H)×184.32(V) mm |
| kawasan bezel | 249(H)×187.5(V) mm |
| kecerahan | 500 cd/m² (Typ.) |
| arah pandang | Symmetry |
| sudut pandangan | 88/88/88/88 (Typ.)(CR≥10) |
| warna sokongan | 16.7M 72% NTSC |
| berat badan | 520g (Max.) |
| kadar bingkai | 60Hz |
| jenis antara muka | LVDS (1 ch, 8-bit) , 20 pins Connector |
| bekalan kuasa | 3.3V (Typ.) |
| persekitaran | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
| model | EV121X0M-N10 |
| menaip | a-Si TFT-LCD , LCM |
| konfigurasi | RGB Vertical Stripe |
| garis besar malap. | 260.5(H)×204(V) ×9.2(D) mm |
| rawatan | - |
| nisbah kontras | 1200:1 (Typ.) (TM) |
| masa tindak balas | 25 (Typ.)(Tr+Td) |
| mod operasi | ADS, Normally Black, Transmissive |
| sumber cahaya | WLED , 50K hours , With LED Driver |
| direka untuk | Industrial |
| panel sentuh | Without |
| AA121SJ03 | Mitsubishi | 12.1 | 800×600 |
| AA121SP01 | Mitsubishi | 12.1 | 800×600 |
| LQ121S1DC71 | SHARP | 12.1 | 800×600 |
| LQ121S1LG81 | SHARP | 12.1 | 800×600 |
| LT121EE16000 | TOSHIBA | 12.1 | 1280×800 |
| LTD121EDDZ | TOSHIBA | 12.1 | 1024×768 |
| LTD121EWRF | TOSHIBA | 12.1 | 1280×800 |
| LTD121KC6K | TOSHIBA | 12.1 | 1024×768 |
| LTN121AT08 | Samsung | 12.1 | 1280×800 |
| LTN121XJ-L07 | Samsung | 12.1 | 1024×768 |
