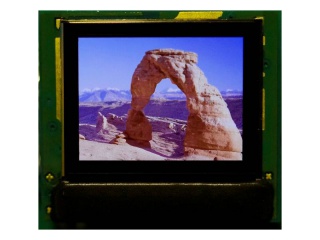

| Nombor Bahagian | EMA-101125-01 |
| Jenama | eMagin |
| Saiz | 0.59 |
| Permohonan | HMD VR AR |
| Resolusi | 800×600 |
| Komposisi | OLED, Si-OLED |
| Kecerahan | |
| CR | 1000:1 |
| Warna | 16.7M |
| Lampu latar | self |
| Antara muka | Parallel |
| pengilang | eMagin |
| nama model | EMA-101125-01 |
| saiz skrin | 0.59 inch |
| jenis skrin | OLED, Si-OLED |
| nombor piksel | 800(RGB)×600 (SVGA) 1693PPI |
| susunan | RGB Vertical Stripe |
| kawasan aktif (mm) | 12 × 9 (H×V) |
| garis besar (mm) | 18 × 16 × 5.4 (H×V×D) |
| kecerahan | 150 cd/m² (Typ.) |
| nisbah kontras | 1000 : 1 (Typ.) (TM) |
| sudut pandangan | - |
| tindak balas | - |
| pandangan yang baik di | Symmetry |
| mod kerja | - |
| kedalaman warna | 16.7M 52% NTSC |
| lampu latar | self |
| jisim | 2.00g (Typ.) |
| digunakan untuk | HMD VR AR |
| kadar segar semula | 60Hz |
| skrin sentuh | Without |
| jenis isyarat | Parallel RGB (1 ch, 8-bit) , Connector 40 pins |
| bekalan voltan | 1.8/5.0V (Typ.)(VDD1.8/VDD5) |
| maks. penilaian | Storage Temp.: -55 ~ 90 °C Operating Temp.: -45 ~ 70 °C |
