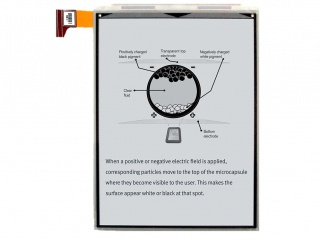

| Nombor Bahagian | ED078KC1 |
| Jenama | E Ink |
| Saiz | 7.8 |
| Permohonan | E-Book Reader |
| Resolusi | 1404×1872 |
| Komposisi | EPD , EPD |
| Kecerahan | |
| CR | 16:1 |
| Warna | Grayscale |
| Lampu latar | No |
| Antara muka | Parallel |
| jenama panel | E Ink |
| saiz panel | 7.8" |
| resolusi | 1404×1872, 300PPI |
| kawasan paparan | 118.638(W)×158.184(H) mm |
| saiz garis besar | 127.6(W)×173.8(H) ×2.05(D) mm |
| kecerahan | - |
| sudut pandangan | - |
| pandangan terbaik pada | - |
| warna paparan | Grayscale |
| kekerapan | 85Hz |
| berat panel | 36.9±5.0g |
| antara muka isyarat | Parallel Data (2ch, 8-bit) , 40 pins Connector |
| voltan masukan | 3.3V (Typ.) |
| persekitaran | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -25 ~ 70 °C |
| model panel | ED078KC1 |
| jenis panel | EPD , EPD |
| format piksel | Rectangle |
| pembukaan bezel | - |
| permukaan | - |
| nisbah kontras | 16:1 (Typ.) (RF) |
| mod paparan | - |
| masa tindak balas | - |
| jenis lampu | No B/L |
| skrin sentuh | Without |
| permohonan | E-Book Reader |
