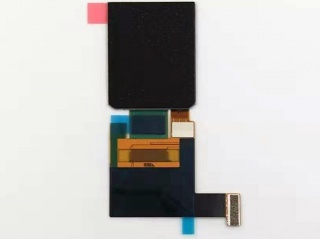

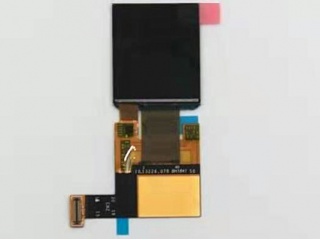

| Nombor Bahagian | E1417AK8.A |
| Jenama | EDO |
| Saiz | 1.4 |
| Permohonan | Wearable |
| Resolusi | 320×360 |
| Komposisi | AM-OLED, OLED |
| Kecerahan | |
| CR | 10000:1 |
| Warna | 16.7M |
| Lampu latar | self |
| Antara muka | |
| jenama | EDO |
| model | E1417AK8.A |
| saiz pepenjuru | 1.4 inch |
| menaip | AM-OLED, OLED |
| format piksel | 320(RGB)×360 340PPI |
| konfigurasi | RGB Vertical Stripe |
| kawasan aktif | 23.84(H)×26.82(V) mm |
| garis besar malap. | 26.04(H)×31.78(V) mm |
| kecerahan | 350 cd/m² (Typ.) |
| nisbah kontras | 10000:1 (Min.) (TM) |
| arah pandang | Symmetry |
| masa tindak balas | 2 (Typ.)(Tr+Td) |
| sudut pandangan | 80/80/80/80 (Typ.)(CR≥1000) |
| mod operasi | - |
| warna sokongan | 16.7M 105% NTSC |
| sumber cahaya | self |
| berat badan | TBD |
| direka untuk | Wearable |
| kadar bingkai | 60Hz |
| panel sentuh | PCAP |
| Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -40 ~ 80 °C |
