| Nombor Bahagian | COM70H7M40ULC |
| Jenama | Ortustech |
| Saiz | 7.0 |
| Permohonan | Industrial Outdoor H |
| Resolusi | 800×480 |
| Komposisi | a-Si TFT-LCD , LCM |
| Kecerahan | |
| CR | 700:13:1 |
| Warna | 262K/16.7M |
| Lampu latar | 7S2P |
| Antara muka | |
| jenama panel | Ortustech |
| saiz panel | 7.0" |
| resolusi | 800(RGB)×480, WVGA, 133PPI |

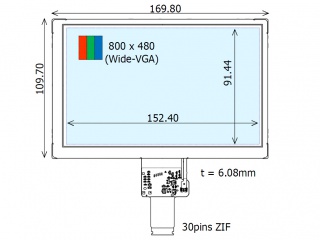

| kawasan paparan | 152.4(W)×91.44(H) mm |
| saiz garis besar | 169.8(W)×109.7(H) ×6.11(D) mm |
| kecerahan | 800 cd/m² (Typ.) |
| sudut pandangan | 80/80/80/80 (Min.)(CR≥10) |
| pandangan terbaik pada | Symmetry |
| warna paparan | 262K/16.7M 50% NTSC |
| kekerapan | 60Hz |
| berat badan | TBD |
| model panel | COM70H7M40ULC |
| jenis panel | a-Si TFT-LCD , LCM |
| format piksel | RGB Vertical Stripe |
| pembukaan bezel | - |
| permukaan | Hard coating (3H) |
| nisbah kontras | 700:1 (Typ.) (TM) 3:1 (Typ.) (RF) |
| mod paparan | VA, Normally Black, Transflective |
| masa tindak balas | 50 (Typ.)(Tr+Td) |
| jenis lampu | 7S2P WLED , 50K hours , Without Driver |
| skrin sentuh | Without |
| permohonan | Industrial Outdoor High Brightness Automotive Display |
| A070VW05 V2 | AUO | 7.0 | 800×480 |
| AT070TN83 TP | Innolux | 7.0 | 800×480 |
| CLAA069LA0ACW | CPT | 7.0 | 800×480 |
| CLAA070NQ02 XN | CPT | 7.0 | 1024×600 |
| HJ070IA-04K | Innolux | 7.0 | 800×1280 |
| LD070WS2-SL03 | LG Display | 7.0 | 1024×600 |
| LMS700JF04-0 | Samsung | 7.0 | 1024×600 |
| PM070WU1 | E Ink | 7.0 | 800×480 |
| TD070WGCB2 | TPO | 7.0 | 854×480 |
| TM070DDH07 | Tianma | 7.0 | 1024×600 |
