| Nombor Bahagian | COM121T9M14CSS |
| Jenama | Ortustech |
| Saiz | 12.1 |
| Permohonan | Industrial |
| Resolusi | 800×600 |
| Komposisi | a-Si TFT-LCD, LCM |
| Kecerahan | |
| CR | 1000:1 |
| Warna | 262K/16.7M |
| Lampu latar | WLED |
| Antara muka | LVDS |
| jenama | Ortustech |
| model | COM121T9M14CSS |
| saiz pepenjuru | 12.1 inch |
| menaip | a-Si TFT-LCD, LCM |
| format piksel | 800(RGB)×600 [SVGA] 82PPI |
| konfigurasi | RGB Vertical Stripe |

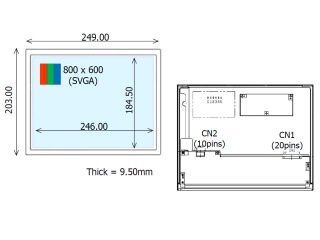

| kawasan aktif | 246(H)×184.5(V) mm |
| garis besar malap. | 260.5(H)×203(V) ×10(D) mm |
| kecerahan | 600 cd/m² (Typ.) |
| nisbah kontras | 1000:1 (Typ.) (TM) |
| arah pandang | Symmetry |
| masa tindak balas | 40 (Max.)(Tr+Td) |
| sudut pandangan | 88/88/88/88 (Typ.)(CR≥10) |
| mod operasi | FFS, Normally Black, Transmissive |
| warna sokongan | 262K/16.7M 48% NTSC |
| sumber cahaya | WLED , 70K hours , With LED Driver |
| berat badan | 500g (Typ.) |
| direka untuk | Industrial |
| kadar bingkai | 60Hz |
| panel sentuh | Without |
| jenis antara muka | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
| bekalan kuasa | 3.3V (Typ.) |
| persekitaran | Operating Temperature: -30 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
