| Nombor Bahagian | COM104H9M11SSS |
| Jenama | Ortustech |
| Saiz | 10.4 |
| Permohonan | Industrial |
| Resolusi | 800×600 |
| Komposisi | a-Si TFT-LCD, LCM |
| Kecerahan | |
| CR | 1000:1 |
| Warna | 262K/16.7M |
| Lampu latar | WLED |
| Antara muka | LVDS |
| jenama | Ortustech |
| model | COM104H9M11SSS |
| saiz pepenjuru | 10.4 inch |
| menaip | a-Si TFT-LCD, LCM |
| format piksel | 800(RGB)×600 [SVGA] 96PPI |
| konfigurasi | RGB Vertical Stripe |

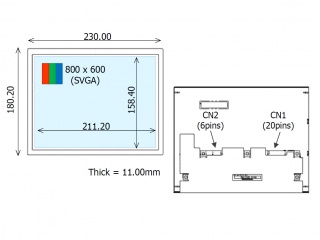

| kawasan aktif | 211.2(H)×158.4(V) mm |
| garis besar malap. | 230(H)×180.2(V) ×11.5(D) mm |
| kecerahan | 650 cd/m² (Typ.) |
| nisbah kontras | 1000:1 (Typ.) (TM) |
| arah pandang | Symmetry |
| masa tindak balas | 40 (Max.)(Tr+Td) |
| sudut pandangan | 85/85/85/85 (Typ.)(CR≥10) |
| mod operasi | FFS, Normally Black, Transflective |
| warna sokongan | 262K/16.7M 47% NTSC |
| sumber cahaya | WLED , With LED Driver |
| berat badan | TBD |
| direka untuk | Industrial |
| kadar bingkai | 60Hz |
| panel sentuh | Without |
| jenis antara muka | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
| bekalan kuasa | 3.3V (Typ.) |
| persekitaran | Operating Temperature: -30 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
| AA104VC04 | Mitsubishi | 10.4 | 640×480 |
| AA104VC06 | Mitsubishi | 10.4 | 640×480 |
| LB104S01-TL02 | LG Display | 10.4 | 800×600 |
| LP104V1 | LG Display | 10.4 | 640×480 |
| LQ104S1LG81 | SHARP | 10.4 | 800×600 |
| LQ104V1DG11 | SHARP | 10.4 | 640×480 |
| LT104AD18F00 | TOSHIBA | 10.4 | 800×600 |
| LTD104EA5F | TOSHIBA | 10.4 | 1024×768 |
| NL6448AC33-18A | NLT | 10.4 | 640×480 |
| TX26D17VM2BAA | KOE | 10.4 | 640×480 |
