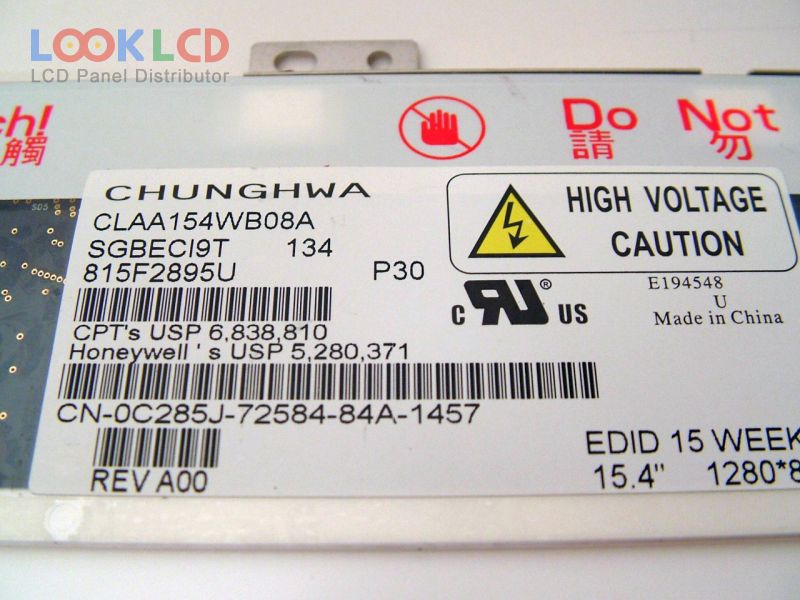

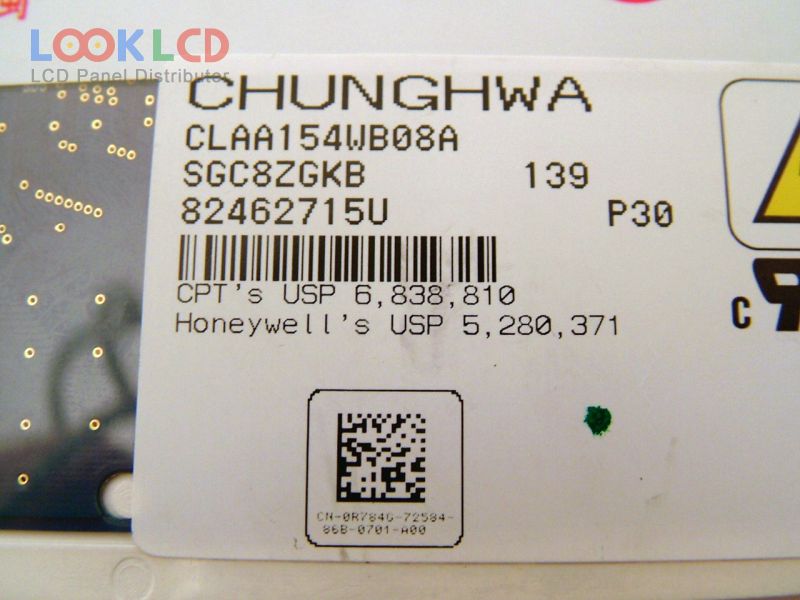

| Nombor Bahagian | CLAA154WB08A |
| Jenama | CPT |
| Saiz | 15.4 |
| Permohonan | NBPC |
| Resolusi | 1280×800 |
| Komposisi | LCM |
| Kecerahan | 220 |
| CR | 350:1 |
| Warna | 262K |
| Lampu latar | CCFL |
| Antara muka | LVDS |
| jenama panel | CPT |
| model panel | CLAA154WB08A 7 Compatible model |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 15.4 inch |
| resolusi | 1280(RGB)×800 , WXGA |
| mod paparan | TN, Normally White, Transmissive |
| kawasan aktif | 331.2×207 mm |
| garis besar | 344×242.4×6.2 mm |
| gaya bentuk | Wedge (PCBA Bent, Depth ≥5.2mm) |
| permukaan | Glare (Haze 0%), Hard coating (3H) |
| kecerahan | 220 cd/m² (Typ.) |
| nisbah kontras | 350:1 (Typ.) |
| warna paparan | 262K (6-bit), CIE193150% |
| masa tindak balas | 6/10 (Typ.)(Tr/Td) |
| sudut pandangan | 45/45/20/35 (Typ.)(CR≥10)(L/R/U/D) |
| kekerapan | 60Hz |
| jenis lampu | 1 pcsCCFLWithout Driver |
| antara muka isyarat | LVDS (1 ch, 6-bit), 30 pins |
| voltan masukan | 3.3V (Typ.) |
| permohonan | NBPC |
| CLAA150PB03 | CPT | 15.0 | 1400×1050 |
| CLAA150XM05 | CPT | 15.0 | 1024×768 |
| CLAA150XP01 | CPT | 15.0 | 1024×768 |
| CLAA154WB04N | CPT | 15.4 | 1280×800 |
| CLAA154WB08A | CPT | 15.4 | 1280×800 |
| CLAA154WB09A | CPT | 15.4 | 1280×800 |
| CLAA156WA01A | CPT | 15.6 | 1366×768 |
| CLAA156WA07A | CPT | 15.6 | 1366×768 |
| CLAA156WA12 | CPT | 15.6 | 1366×768 |
| CLAA156WA15A | CPT | 15.6 | 1366×768 |
| B156RW01 V0 | AUO | 15.6 | 1600×900 |
| B156XW04 V5 | AUO | 15.6 | 1366×768 |
| LP141WXV-SLA2 | LG Display | 14.1 | 1280×800 |
| LP154WX7-TLA1 | LG Display | 15.4 | 1280×800 |
| LP171WP4-TLP1 | LG Display | 17.1 | 1440×900 |
| LTM09C362 | TOSHIBA | 8.9 | 1024×600 |
| LTN141W1-L09-1 | Samsung | 14.1 | 1280×800 |
| LTN150XB-L02 | Samsung | 15.0 | 1024×768 |
| N140HCE-EBA | Innolux | 14.0 | 1920×1080 |
| N156B3-L0B | Innolux | 15.6 | 1366×768 |
