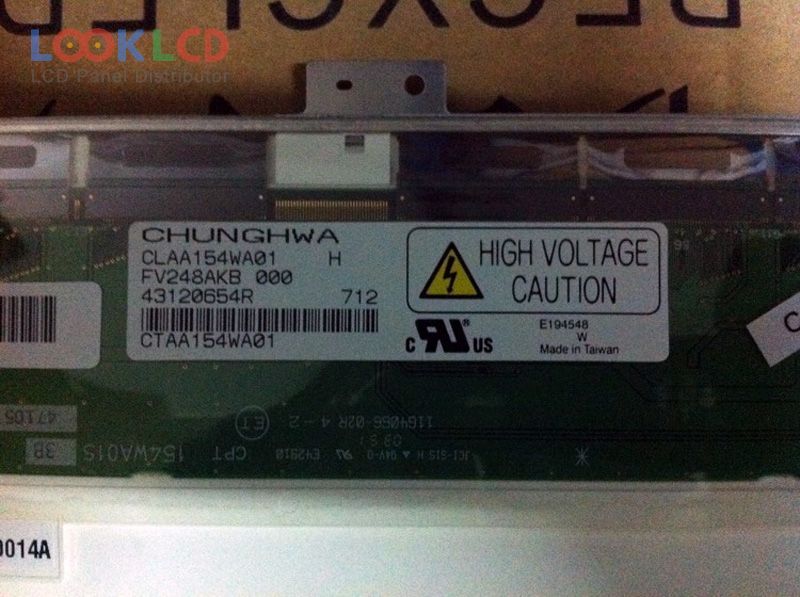

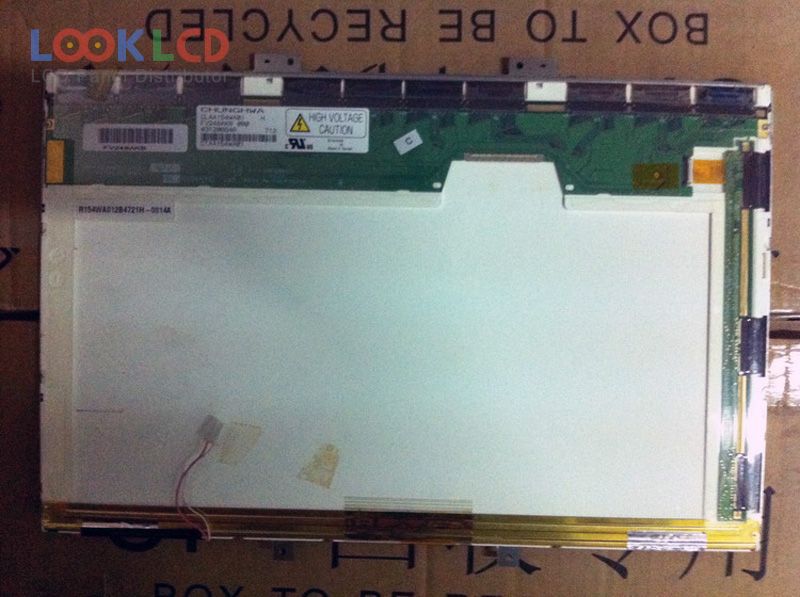

| Nombor Bahagian | CLAA154WA01 |
| Jenama | CPT |
| Saiz | 15.4 |
| Permohonan | NBPC |
| Resolusi | 1280×800 |
| Komposisi | LCM |
| Kecerahan | 200 |
| CR | 400:1 |
| Warna | 262K |
| Lampu latar | CCFL |
| Antara muka | LVDS |
| jenama panel | CPT |
| model panel | CLAA154WA01 16 Compatible model |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 15.4 inch |
| resolusi | 1280(RGB)×800 , WXGA |
| mod paparan | TN, Normally White, Transmissive |
| kawasan aktif | 331.2×207 mm |
| garis besar | 344×243.5×6.5 mm |
| gaya bentuk | Wedge (PCBA Bent, Depth ≥5.2mm) |
| permukaan | Antiglare (Haze 12%), Hard coating (3H) |
| kecerahan | 200 cd/m² (Typ.) |
| nisbah kontras | 400:1 (Typ.) |
| warna paparan | 262K (6-bit) |
| masa tindak balas | 8/20 (Typ.)(Tr/Td) |
| sudut pandangan | 65/65/50/50 (Typ.)(CR≥10)(L/R/U/D) |
| kekerapan | 60Hz |
| jenis lampu | 1 pcsCCFLWithout Driver |
| antara muka isyarat | LVDS (1 ch, 6-bit), 30 pins |
| voltan masukan | 3.3V (Typ.) |
| permohonan | NBPC |
