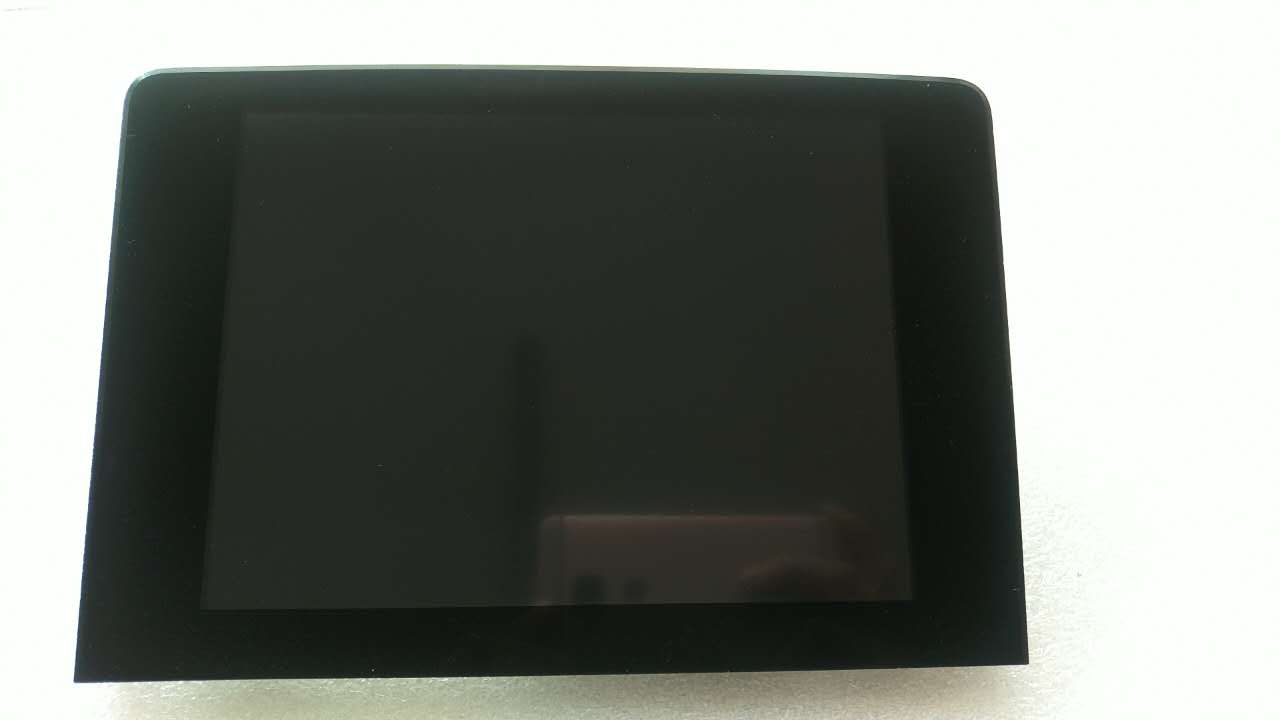

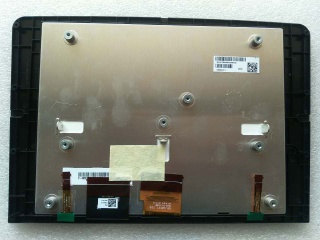

| Nombor Bahagian | C084SAT01.1 |
| Jenama | AUO |
| Saiz | 8.4 |
| Permohonan | Automotive Display |
| Resolusi | 800×600 |
| Komposisi | LCM , a-Si TFT-LCD |
| Kecerahan | |
| CR | 1000:1 |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antara muka | |
| pengilang | AUO |
| saiz skrin | 8.4 inch |
| nombor piksel | 800×600(RGB) (SVGA) 118PPI |
| kawasan aktif (mm) | 170.88 × 128.16 (H×V) |
| kecerahan | - |
| sudut pandangan | 80/80/80/80 (Typ.)(CR≥10) |
| pandangan yang baik di | Symmetry |
| kedalaman warna | 16.7M |
| jisim | - |
| kadar segar semula | 60Hz |
| maks. penilaian | Storage Temp.: -40 ~ 95 °C Operating Temp.: -30 ~ 90 °C |

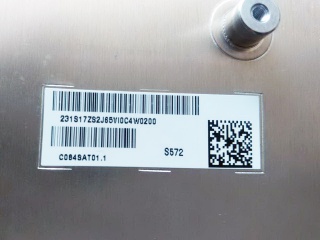

| nama model | C084SAT01.1 |
| jenis skrin | LCM , a-Si TFT-LCD |
| susunan | RGB Horizontal Stripe |
| garis besar (mm) | - |
| nisbah kontras | 1000 : 1 (Typ.) (TM) |
| tindak balas | 15/20 (Typ.)(Tr/Td) ms |
| mod kerja | AHVA, Normally Black, Transmissive |
| lampu latar | WLED , No Driver |
| digunakan untuk | Automotive Display |
| skrin sentuh | Without |
| AA084SB11 | Mitsubishi | 8.4 | 800×600 |
| AA084SD11 | Mitsubishi | 8.4 | 800×600 |
| AA084XA03 | Mitsubishi | 8.4 | 1024×768 |
| G084SN03 V1 | AUO | 8.4 | 800×600 |
| M084GNS1 R1 | IVO | 8.4 | 800×600 |
| NL10276BC16-01 | NLT | 8.4 | 1024×768 |
| NL6448BC26-01 | NLT | 8.4 | 640×480 |
| T-51639D084JU-FW-A-AB | Kyocera | 8.4 | 1024×768 |
| TM084SDHG01 | Tianma | 8.4 | 800×600 |
| TM084SDHG03 | Tianma | 8.4 | 800×600 |
