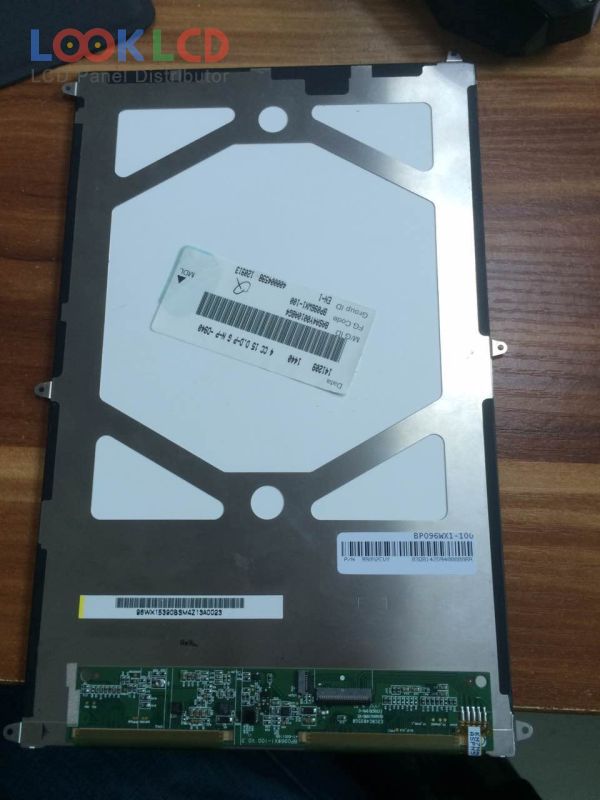

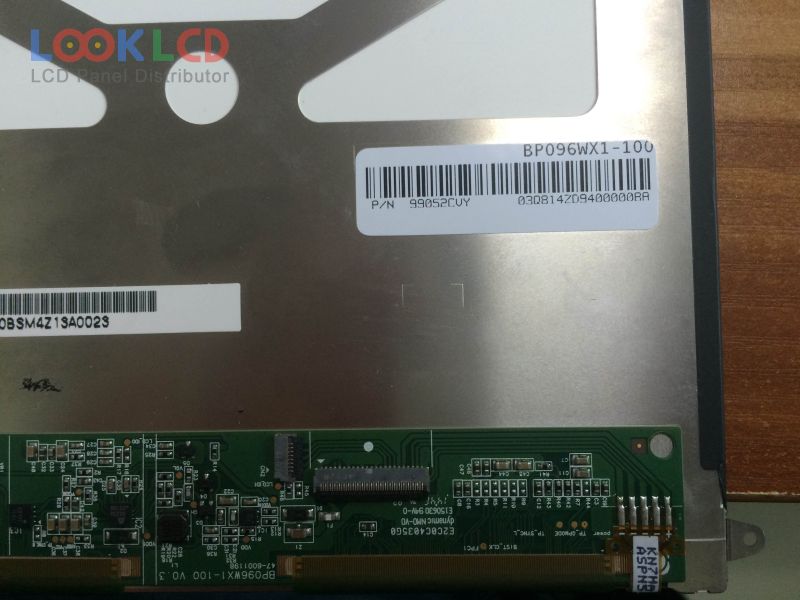

| Nombor Bahagian | BP096WX1-100 |
| Jenama | BOE |
| Saiz | 9.6 |
| Permohonan | PAD |
| Resolusi | 800×1280 |
| Komposisi | LCM |
| Kecerahan | 350 |
| CR | 800:1 |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antara muka | MIPI |
| jenama panel | BOE |
| model panel | BP096WX1-100 |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 9.6 inch |
| resolusi | 800(RGB)×1280 , WXGA |
| mod paparan | ADS, Normally Black, Transmissive |
| kawasan aktif | 129×206.4 mm |
| garis besar | 136.8×217.1×4.2 mm |
| permukaan | Antiglare (Haze 3.1%) |
| kecerahan | 350 cd/m² (Typ.) |
| nisbah kontras | 800:1 (Typ.) |
| warna paparan | 16.7M (8-bit), CIE193150% |
| masa tindak balas | 20/20 (Typ.)(Tr/Td) |
| sudut pandangan | 80/80/80/80 (Min.)(CR≥10)(L/R/U/D) |
| kekerapan | 60Hz |
| jenis lampu | 7S4PWLEDWithout Driver |
| antara muka isyarat | MIPI (4 data lanes), 45 pins |
| voltan masukan | 1.8/3.7V (Typ.)(VDD/VDDI) |
| permohonan | PAD |
