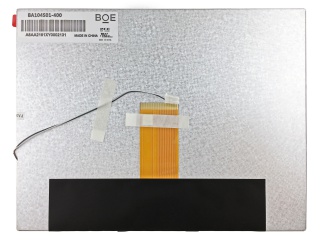

| Nombor Bahagian | BA104S01-400 |
| Jenama | BOE |
| Saiz | 10.4 |
| Permohonan | Digital Photo Frame |
| Resolusi | 800×600 |
| Komposisi | a-Si TFT-LCD , LCM |
| Kecerahan | |
| CR | 800:1 |
| Warna | 262K/16.7M |
| Lampu latar | 3S12P |
| Antara muka | Parallel |
| jenama panel | BOE |
| saiz panel | 10.4" |
| resolusi | 800(RGB)×600, SVGA, 96PPI |
| kawasan paparan | 211.2(W)×158.4(H) mm |
| saiz garis besar | 228.4(W)×175.4(H) mm |
| kecerahan | 350 cd/m² (Typ.) |
| sudut pandangan | 80/80/65/75 (Typ.)(CR≥10) |
| pandangan terbaik pada | - |
| warna paparan | 262K/16.7M 55% NTSC |
| kekerapan | 60Hz |
| berat panel | TBD |
| antara muka isyarat | Parallel RGB (1 ch, 6/8-bit) , 60 pins FPC |
| voltan masukan | 3.3/9/18/-8V (Typ.)(VCC/AVDD/VGH/VGL) |
| persekitaran | Operating Temp.: -20 ~ 60 °C ; Storage Temp.: -30 ~ 70 °C |
| model panel | BA104S01-400 |
| jenis panel | a-Si TFT-LCD , LCM |
| format piksel | RGB Vertical Stripe |
| pembukaan bezel | 214.4(W)×161.6(H) mm |
| permukaan | Antiglare |
| nisbah kontras | 800:1 (Typ.) (TM) |
| mod paparan | TN, Normally White, Transmissive |
| masa tindak balas | 30 (Typ.)(Tr+Td) |
| jenis lampu | 3S12P WLED , 20K hours , Without Driver |
| skrin sentuh | Without |
| permohonan | Digital Photo Frame Home Appliance |
