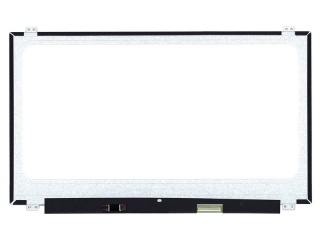

| Nombor Bahagian | B173QTN01.0 |
| Jenama | AUO |
| Saiz | 17.3 |
| Permohonan | Laptop |
| Resolusi | 2560×1440 |
| Komposisi | a-Si TFT-LCD, LCM |
| Kecerahan | |
| CR | 700:1 |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antara muka | eDP |
| jenama | AUO |
| model | B173QTN01.0 (AUO1096) |
| saiz pepenjuru | 17.3 inch |
| menaip | a-Si TFT-LCD, LCM |
| format piksel | 2560(RGB)×1440 [Quad-HD] 170PPI |
| konfigurasi | RGB Vertical Stripe |
| kawasan aktif | 382.08(H)×214.92(V) mm |
| garis besar malap. | 398.1(H)×252.5(V) ×4.3(D) mm |
| kawasan bezel | - |
| rawatan | Antiglare, Hard coating (3H) |
| kecerahan | 400 cd/m² (Typ.) |
| nisbah kontras | 700:1 (Typ.) (TM) |
| arah pandang | - |
| masa tindak balas | 5 (Typ.)(Tr+Tf) |
| sudut pandangan | 70/70/60/60 (Typ.)(CR≥10) |
| mod operasi | TN, Normally White, Transmissive |
| warna sokongan | 16.7M 72% NTSC |
| sumber cahaya | WLED , 15K hours , With LED Driver |
| gaya bentuk | Flat (PCBA Flat, T3.4~4.0mm) |
| direka untuk | Laptop |
| kadar bingkai | 120Hz |
| panel sentuh | Without |
| jenis antara muka | eDP (4 Lanes) , eDP1.4 , 40 pins Connector |
| bekalan kuasa | 3.3V (Typ.) |
| persekitaran | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
