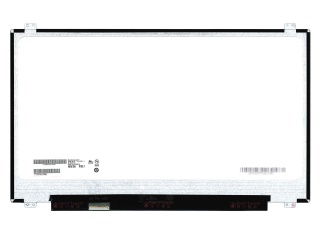

| Nombor Bahagian | B173HAN01.6 |
| Jenama | AUO |
| Saiz | 17.3 |
| Permohonan | Laptop Gaming |
| Resolusi | 1920×1080 |
| Komposisi | a-Si TFT-LCD , LCM |
| Kecerahan | |
| CR | 1000:1 |
| Warna | 16.2M |
| Lampu latar | WLED |
| Antara muka | eDP |
| jenama | AUO |
| saiz pepenjuru | 17.3 inch |
| format piksel | 1920(RGB)×1080 [FHD] 127PPI |
| kawasan aktif | 381.888(H)×214.812(V) mm |
| kawasan bezel | - |
| kecerahan | 300 cd/m² (Typ.) |
| arah pandang | Symmetry |
| sudut pandangan | 85/85/85/85 (Typ.)(CR≥10) |
| warna sokongan | 16.2M 72% NTSC |
| gaya bentuk | Flat (PCBA Flat, T3.4~4.0mm) |
| kadar bingkai | 120Hz |
| jenis antara muka | eDP (4 Lanes) , eDP1.3 , 40 pins Connector |
| bekalan kuasa | 3.3V (Typ.) |
| persekitaran | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| model | B173HAN01.6 (AUO169D) |
| menaip | a-Si TFT-LCD , LCM |
| konfigurasi | RGB Vertical Stripe |
| garis besar malap. | 398.1(H)×250.5(V) ×4(D) mm |
| rawatan | Antiglare, Hard coating (3H) |
| nisbah kontras | 1000:1 (Typ.) (TM) |
| masa tindak balas | 25 (Typ.)(Tr+Td) |
| mod operasi | AHVA, Normally Black, Transmissive |
| sumber cahaya | WLED , 15K hours , With LED Driver |
| direka untuk | Laptop Gaming |
| panel sentuh | Without |
| B173HAN01.0 | AUO | 17.3 | 1920×1080 |
| B173HTN01.1 | AUO | 17.3 | 1920×1080 |
| B173HW01 V4 | AUO | 17.3 | 1920×1080 |
| B173HW01 V5 | AUO | 17.3 | 1920×1080 |
| B173HW02 V1 | AUO | 17.3 | 1920×1080 |
| B173RW01 V0 | AUO | 17.3 | 1600×900 |
| B173RW01 V1 | AUO | 17.3 | 1600×900 |
| HSD173PUW1-A | HannStar | 17.3 | 1920×1080 |
| HSD173PUW1-A00 | HannStar | 17.3 | 1920×1080 |
| LP173WD1-TLA1 | LG Display | 17.3 | 1600×900 |
