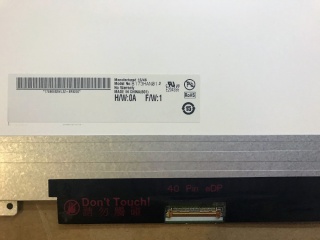

| Nombor Bahagian | B173HAN01.2 |
| Jenama | AUO |
| Saiz | 17.3 |
| Permohonan | Laptop Gaming |
| Resolusi | 1920×1080 |
| Komposisi | LCM, a-Si TFT-LCD |
| Kecerahan | |
| CR | 700:1 |
| Warna | 16.2M |
| Lampu latar | WLED |
| Antara muka | eDP |
| pengilang | AUO |
| nama model | B173HAN01.2 |
| saiz skrin | 17.3 inch |
| jenis skrin | LCM, a-Si TFT-LCD |
| nombor piksel | 1920(RGB)×1080 (FHD) 127PPI |
| susunan | RGB Vertical Stripe |
| kawasan aktif (mm) | 381.888 × 214.812 (H×V) |
| garis besar (mm) | 398.1 × 250.5 × 4 (H×V×D) |
| kecerahan | - |
| nisbah kontras | 700 : 1 (Typ.) (TM) |
| sudut pandangan | 85/85/85/85 (Typ.)(CR≥10) |
| tindak balas | 25 (Typ.)(Tr+Td) ms |
| pandangan yang baik di | Symmetry |
| mod kerja | AHVA, Normally Black, Transmissive |
| kedalaman warna | 16.2M |
| lampu latar | WLED , 15K hours , With LED Driver |
| bentuk garis besar | Flat (PCBA Flat, T3.4~4.0mm) |
| digunakan untuk | Laptop Gaming |
| kadar segar semula | 120Hz |
| skrin sentuh | Without |
| jenis isyarat | eDP (4 Lanes) , Connector 40 pins |
| bekalan voltan | 3.3V (Typ.) |
| maks. penilaian | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| B173HAN01.0 | AUO | 17.3 | 1920×1080 |
| B173HTN01.1 | AUO | 17.3 | 1920×1080 |
| B173HW01 V4 | AUO | 17.3 | 1920×1080 |
| B173HW01 V5 | AUO | 17.3 | 1920×1080 |
| B173HW02 V1 | AUO | 17.3 | 1920×1080 |
| LP173WD1-TLD3 | LG Display | 17.3 | 1600×900 |
| LP173WD1-TLN1 | LG Display | 17.3 | 1600×900 |
| LTN173HT02-C01 | Samsung | 17.3 | 1920×1080 |
| LTN173HT02-X01 | Samsung | 17.3 | 1920×1080 |
