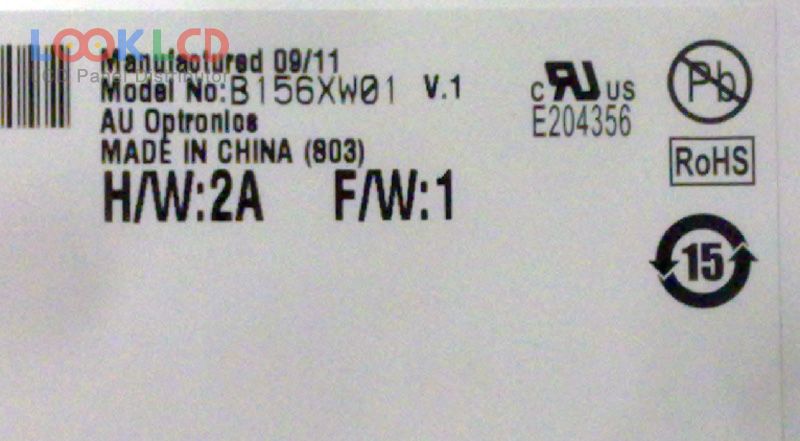

| Nombor Bahagian | B156XW01 V1 |
| Jenama | AUO |
| Saiz | 15.6 |
| Permohonan | NBPC |
| Resolusi | 1366×768 |
| Komposisi | LCM |
| Kecerahan | 220 |
| CR | 400:1 |
| Warna | 262K |
| Lampu latar | CCFL |
| Antara muka | LVDS |
| jenama panel | AUO |
| model panel | B156XW01 V1 11 Compatible model |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 15.6 inch |
| resolusi | 1366(RGB)×768 , WXGA |
| mod paparan | TN, Normally White, Transmissive |
| kawasan aktif | 344.232×193.536 mm |
| garis besar | 359.3×209.5×6.4 mm |
| gaya bentuk | Wedge (PCBA Bent, Depth ≥5.2mm) |
| permukaan | Antiglare |
| kecerahan | 220 cd/m² (Typ.) |
| nisbah kontras | 400:1 (Typ.) |
| warna paparan | 262K (6-bit), CIE193160% |
| masa tindak balas | 8 (Typ.)(Tr+Td) |
| sudut pandangan | 45/45/15/35 (Min.)(CR≥10)(L/R/U/D) |
| kekerapan | 60Hz |
| jenis lampu | 1 pcsCCFLWithout Driver |
| antara muka isyarat | LVDS (1 ch, 6-bit), 30 pins |
| voltan masukan | 3.3V (Typ.) |
| permohonan | NBPC |
| B156XTK01.0 | AUO | 15.6 | 1366×768 |
| B156XTN02.0 | AUO | 15.6 | 1366×768 |
| B156XTN02.2 | AUO | 15.6 | 1366×768 |
| B156XTN03.1 | AUO | 15.6 | 1366×768 |
| B156XTT01.0 | AUO | 15.6 | 1366×768 |
| B156XTT01.1 | AUO | 15.6 | 1366×768 |
| B156XW01 V1 | AUO | 15.6 | 1366×768 |
| B156XW02 V6 | AUO | 15.6 | 1366×768 |
| B156XW04 V0 | AUO | 15.6 | 1366×768 |
| B156XW04 V5 | AUO | 15.6 | 1366×768 |
| B140HTN01.3 | AUO | 14.0 | 1920×1080 |
| B156XTN02.2 | AUO | 15.6 | 1366×768 |
| HSD173PUW1-A01 | HannStar | 17.3 | 1920×1080 |
| LP133WH2-TLN4 | LG Display | 13.3 | 1366×768 |
| LP156UD1-SPA2 | LG Display | 15.6 | 3840×2160 |
| N154I4-L03 | Innolux | 15.4 | 1280×800 |
| N154Z3-L01 | Innolux | 15.4 | 1680×1050 |
| N156BGE-EB1 | Innolux | 15.6 | 1366×768 |
| N156O6-L01 | Innolux | 15.6 | 1600×900 |
| NT116WHM-N22 | BOE | 11.6 | 1366×768 |
