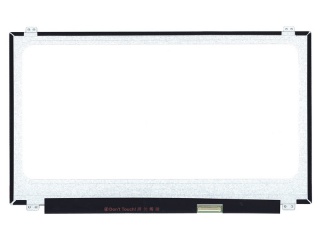

| Nombor Bahagian | B156HAN06.2 HWAA |
| Jenama | AUO |
| Saiz | 15.6 |
| Permohonan | Laptop |
| Resolusi | 1920×1080 |
| Komposisi | a-Si TFT-LCD, LCM |
| Kecerahan | |
| CR | 700:1 |
| Warna | 262K |
| Lampu latar | WLED |
| Antara muka | eDP |
| jenama panel | AUO |
| model panel | B156HAN06.2 HWAA (AUO62ED) |
| saiz panel | 15.6" |
| jenis panel | a-Si TFT-LCD, LCM |
| resolusi | 1920(RGB)×1080, FHD, 141PPI |
| format piksel | RGB Vertical Stripe |
| kawasan paparan | 344.16(W)×193.59(H) mm |
| pembukaan bezel | - |
| saiz garis besar | 359.5(W)×223.8(H) ×3.4(D) mm |
| permukaan | Glare (Haze 0%) |
| kecerahan | 220 cd/m² (Typ.) |
| nisbah kontras | 700:1 (Typ.) (TM) |
| sudut pandangan | 85/85/85/85 (Typ.)(CR≥10) |
| mod paparan | AHVA, Normally Black, Transmissive |
| pandangan terbaik pada | Symmetry |
| masa tindak balas | 25 (Typ.)(Tr+Td) |
| warna paparan | 262K 45% NTSC |
| jenis lampu | WLED , 15K hours , With LED Driver |
| kekerapan | 60Hz |
| skrin sentuh | Without |
| gaya bentuk | Slim (PCBA Flat, T≤3.2mm) |
| permohonan | Laptop |
| antara muka isyarat | eDP (2 Lanes) , 40 pins Connector |
| voltan masukan | 3.3V (Typ.) |
| persekitaran | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
