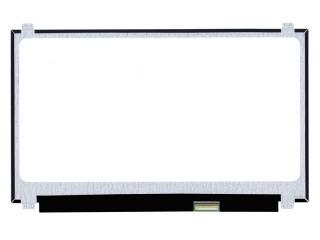

| Nombor Bahagian | B156HAN02.2 HWAA |
| Jenama | AUO |
| Saiz | 15.6 |
| Permohonan | Laptop |
| Resolusi | 1920×1080 |
| Komposisi | a-Si TFT-LCD , LCM |
| Kecerahan | |
| CR | 700:1 |
| Warna | 262K |
| Lampu latar | WLED |
| Antara muka | eDP |
| jenama panel | AUO |
| saiz panel | 15.6" |
| resolusi | 1920(RGB)×1080, FHD, 141PPI |
| kawasan paparan | 344.16(W)×193.59(H) mm |
| saiz garis besar | 350.56(W)×223.6(H) ×3.2(D) mm |
| kecerahan | 250 cd/m² (Typ.) |
| sudut pandangan | 85/85/85/85 (Typ.)(CR≥10) |
| pandangan terbaik pada | Symmetry |
| warna paparan | 262K 46% NTSC |
| kekerapan | 60Hz |
| gaya bentuk | Slim (PCBA Flat, T≤3.2mm) |
| antara muka isyarat | eDP (2 Lanes) , eDP1.2 , 40 pins Connector |
| voltan masukan | 3.3V (Typ.) |
| persekitaran | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| model panel | B156HAN02.2 HWAA (AUO22ED) |
| jenis panel | a-Si TFT-LCD , LCM |
| format piksel | RGB Vertical Stripe |
| pembukaan bezel | - |
| permukaan | Antiglare |
| nisbah kontras | 700:1 (Typ.) (TM) |
| mod paparan | AHVA, Normally Black, Transmissive |
| masa tindak balas | 25 (Typ.)(Tr+Td) |
| jenis lampu | WLED , 15K hours , With LED Driver |
| skrin sentuh | Without |
| permohonan | Laptop |
| B156HAN01.2 | AUO | 15.6 | 1920×1080 |
| B156HTB01.0 | AUO | 15.6 | 1920×1080 |
| G156HTD01.0 | AUO | 15.6 | 1920×1080 |
| LP156WD1-TLD5 | LG Display | 15.6 | 1600×900 |
| LP156WF1-TLF3 | LG Display | 15.6 | 1920×1080 |
| LP156WF1-TLF4 | LG Display | 15.6 | 1920×1080 |
| LP156WH3-TLT2 | LG Display | 15.6 | 1366×768 |
| LTN156AT20-P01 | Samsung | 15.6 | 1366×768 |
| LTN156AT36-D01 | Samsung | 15.6 | 1366×768 |
| TMS156WX1-01TB | Tianma | 15.6 | 1366×768 |
