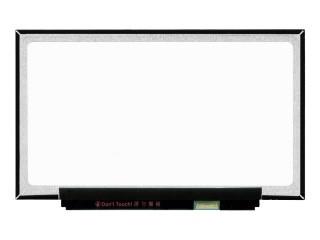

| Nombor Bahagian | B125XTN03.0 |
| Jenama | AUO |
| Saiz | 12.5 |
| Permohonan | Laptop Industrial |
| Resolusi | 1366×768 |
| Komposisi | a-Si TFT-LCD , LCM |
| Kecerahan | |
| CR | 400:1 |
| Warna | 262K |
| Lampu latar | WLED |
| Antara muka | eDP |
| jenama panel | AUO |
| saiz panel | 12.5" |
| resolusi | 1366(RGB)×768, WXGA, 125PPI |
| kawasan paparan | 276.615(W)×155.52(H) mm |
| saiz garis besar | 290.5(W)×181.4(H) ×3(D) mm |
| kecerahan | 300 cd/m² (Typ.) |
| sudut pandangan | 70/70/55/65 (Typ.)(CR≥10) |
| pandangan terbaik pada | 6 o'clock |
| warna paparan | 262K 45% NTSC |
| kekerapan | 60Hz |
| gaya bentuk | Slim (PCBA Flat, T≤3.2mm) |
| antara muka isyarat | eDP (2 Lanes) , eDP1.2 , 30 pins Connector |
| voltan masukan | 3.3V (Typ.) |
| persekitaran | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| model panel | B125XTN03.0 (AUO106C) |
| jenis panel | a-Si TFT-LCD , LCM |
| format piksel | RGB Vertical Stripe |
| pembukaan bezel | - |
| permukaan | Antiglare |
| nisbah kontras | 400:1 (Typ.) (TM) |
| mod paparan | TN, Normally White, Transmissive |
| masa tindak balas | 16 (Typ.)(Tr+Td) |
| jenis lampu | WLED , 15K hours , With LED Driver |
| skrin sentuh | Without |
| permohonan | Laptop Industrial |
