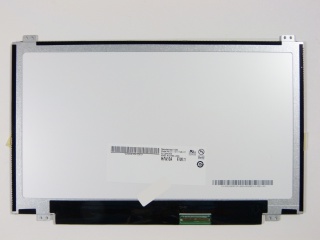

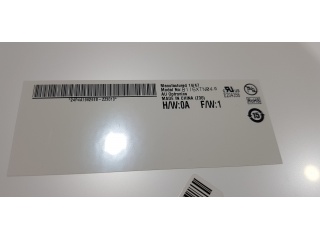

| Nombor Bahagian | B116XTN04.0 HW1A |
| Jenama | AUO |
| Saiz | 11.6 |
| Permohonan | Laptop Netbook PC |
| Resolusi | 1366×768 |
| Komposisi | LCM, a-Si TFT-LCD |
| Kecerahan | |
| CR | 400:1 |
| Warna | 262K |
| Lampu latar | WLED |
| Antara muka | |
| pengilang | AUO |
| nama model | B116XTN04.0 HW1A (AUO405C) |
| saiz skrin | 11.6 inch |
| jenis skrin | LCM, a-Si TFT-LCD |
| nombor piksel | 1366(RGB)×768 (WXGA) 135PPI |
| susunan | RGB Vertical Stripe |
| kawasan aktif (mm) | 256.125 × 144 (H×V) |
| garis besar (mm) | 278 × 168 × 3.6 (H×V×D) |
| kawasan bezel (mm) | - |
| rawatan | Antiglare, Hard coating (3H) |
| kecerahan | 200 cd/m² (Typ.) |
| nisbah kontras | 400 : 1 (Typ.) (TM) |
| sudut pandangan | 45/45/15/35 (Typ.)(CR≥10) |
| tindak balas | 8 (Typ.)(Tr+Td) ms |
| pandangan yang baik di | 6 o'clock |
| mod kerja | TN, Normally White, Transmissive |
| kedalaman warna | 262K 45% NTSC |
| lampu latar | WLED , 10K hours , With LED Driver |
| bentuk garis besar | Flat (PCBA Flat, T3.4~4.0mm) |
| digunakan untuk | Laptop Netbook PC |
| kadar segar semula | 60Hz |
| skrin sentuh | Without |
| Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
