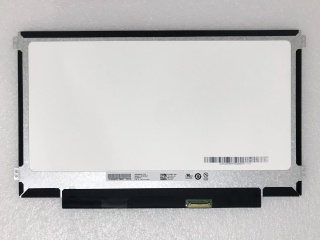

| Nombor Bahagian | B116XTN02.3 HW2G |
| Jenama | AUO |
| Saiz | 11.6 |
| Permohonan | Laptop Netbook PC |
| Resolusi | 1366×768 |
| Komposisi | a-Si TFT-LCD , LCM |
| Kecerahan | |
| CR | 400:1 |
| Warna | 262K |
| Lampu latar | WLED |
| Antara muka | eDP |
| jenama | AUO |
| saiz pepenjuru | 11.6 inch |
| format piksel | 1366(RGB)×768 [WXGA] 135PPI |
| kawasan aktif | 256.125(H)×144(V) mm |
| kawasan bezel | - |
| kecerahan | 220 cd/m² (Typ.) |
| arah pandang | 6 o'clock |
| sudut pandangan | 45/45/15/35 (Typ.)(CR≥10) |
| warna sokongan | 262K 45% NTSC |
| gaya bentuk | Slim (PCBA Flat, T≤3.2mm) |
| kadar bingkai | 60Hz |
| jenis antara muka | eDP (2 Lanes) , 30 pins Connector |
| bekalan kuasa | 3.3V (Typ.) |
| persekitaran | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| model | B116XTN02.3 HW2G |
| menaip | a-Si TFT-LCD , LCM |
| konfigurasi | RGB Vertical Stripe |
| garis besar malap. | 278(H)×168(V) ×3(D) mm |
| rawatan | Hard coating (3H) |
| nisbah kontras | 400:1 (Typ.) (TM) |
| masa tindak balas | 8 (Typ.)(Tr+Td) |
| mod operasi | TN, Normally White, Transmissive |
| sumber cahaya | WLED , 15K hours , With LED Driver |
| direka untuk | Laptop Netbook PC |
| panel sentuh | Without |
