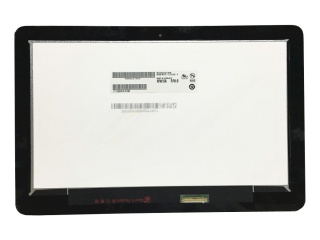

| Nombor Bahagian | B116XAB01.3 |
| Jenama | AUO |
| Saiz | 11.6 |
| Permohonan | Laptop |
| Resolusi | 1366×768 |
| Komposisi | a-Si TFT-LCD, Assemb |
| Kecerahan | |
| CR | 800:1 |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antara muka | eDP |
| jenama | AUO |
| model | B116XAB01.3 (AUO288C) |
| saiz pepenjuru | 11.6 inch |
| menaip | a-Si TFT-LCD, Assembly |
| format piksel | 1366(RGB)×768 [WXGA] 135PPI |
| konfigurasi | RGB Vertical Stripe |
| kawasan aktif | 256.125(H)×144(V) mm |
| garis besar malap. | 284.85(H)×189.84(V) ×4.2(D) mm |
| kawasan bezel | - |
| rawatan | Glare (Haze 0%), Hard coating (7H) |
| kecerahan | 220 cd/m² (Typ.) |
| nisbah kontras | 800:1 (Typ.) (TM) |
| arah pandang | Symmetry |
| masa tindak balas | 27 (Typ.)(Tr+Td) |
| sudut pandangan | 85/85/85/85 (Typ.)(CR≥10) |
| mod operasi | - |
| warna sokongan | 16.7M 50% NTSC |
| sumber cahaya | WLED , 15K hours , With LED Driver |
| gaya bentuk | - |
| direka untuk | Laptop |
| kadar bingkai | 60Hz |
| panel sentuh | On-Cell Touch |
| jenis antara muka | eDP (2 Lanes) , eDP1.2 , 40 pins Connector |
| bekalan kuasa | 3.3V (Typ.) |
| persekitaran | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| B116XAN03.0 HW3A | AUO | 11.6 | 1366×768 |
| B116XAN03.1 HW0A | AUO | 11.6 | 1366×768 |
| B116XAN03.1 HW1A | AUO | 11.6 | 1366×768 |
| B116XTN01.0 HW1A | AUO | 11.6 | 1366×768 |
| B116XTN01.0 HW5A | AUO | 11.6 | 1366×768 |
| B116XTT01.1 | AUO | 11.6 | 1366×768 |
| B116XW02 V0 | AUO | 11.6 | 1366×768 |
| B116XW03 V0 | AUO | 11.6 | 1366×768 |
| B116XW03 V1 | AUO | 11.6 | 1366×768 |
| B116XW05 V004 | AUO | 11.6 | 1366×768 |
