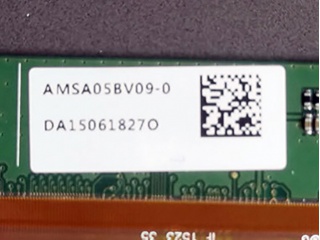

| Nombor Bahagian | AMSA05BV09 |
| Jenama | SAMSUNG |
| Saiz | 10.5 |
| Permohonan | Pad & Tablet |
| Resolusi | 2560×1600 |
| Komposisi | AM-OLED, OLED |
| Kecerahan | |
| CR | 54000:1 |
| Warna | 16.7M |
| Lampu latar | self |
| Antara muka | MIPI |
| jenama panel | SAMSUNG |
| model panel | AMSA05BV09 |
| saiz panel | 10.5" |
| jenis panel | AM-OLED, OLED |
| resolusi | 2560(RGB)×1600, 287PPI |
| format piksel | S-Stripe RGB |
| kawasan paparan | 226.56(W)×141.6(H) mm |
| pembukaan bezel | - |
| saiz garis besar | 251.4(W)×171.1(H) mm |
| permukaan | - |
| kecerahan | 300 cd/m² (Typ.) |
| nisbah kontras | 54000:1 (Min.) (TM) |
| sudut pandangan | 80/80/80/80 (Typ.)(CR≥200) |
| mod paparan | - |
| pandangan terbaik pada | Symmetry |
| masa tindak balas | - |
| warna paparan | 16.7M 100% NTSC |
| jenis lampu | self |
| kekerapan | 60Hz |
| skrin sentuh | PCAP |
| ic pemandu | COG Built-in EA8002ASA |
| berat panel | 143/148g (Typ./Max.) |
| permohonan | Pad & Tablet |
| antara muka isyarat | MIPI (2 ch, 4 data lanes) , 80 pins Connector |
| voltan masukan | 1.8/3.3/3.8V (Typ.)(VDD1/VDD3/VBAT) |
| persekitaran | Operating Temp.: -20 ~ 60 °C ; Storage Temp.: -30 ~ 70 °C |
