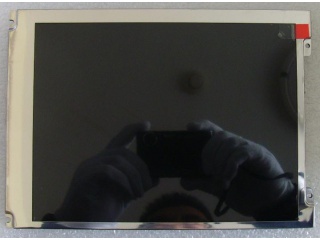

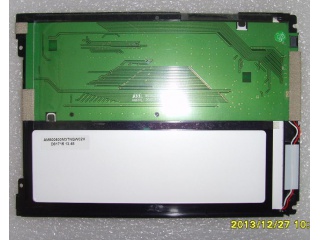

| Nombor Bahagian | AM-800600M3TNQW-02H |
| Jenama | AMPIRE |
| Saiz | 8.4 |
| Permohonan | Industrial |
| Resolusi | 800×600 |
| Komposisi | LCM , a-Si TFT-LCD |
| Kecerahan | |
| CR | 600:1 |
| Warna | 262K |
| Lampu latar | 12S4P |
| Antara muka | LVDS |
| pengilang | AMPIRE |
| nama model | AM-800600M3TNQW-02H |
| saiz skrin | 8.4 inch |
| jenis skrin | LCM , a-Si TFT-LCD |
| nombor piksel | 800(RGB)×600 (SVGA) 119PPI |
| susunan | RGB Vertical Stripe |
| kawasan aktif (mm) | 170.4 × 127.8 (H×V) |
| garis besar (mm) | 203 × 145.5 × 10.4 (H×V×D) |
| kawasan bezel (mm) | 174.15 × 131.2 (H×V) |
| rawatan | - |
| kecerahan | 350 cd/m² (Typ.) |
| nisbah kontras | 600 : 1 (Typ.) (TM) |
| sudut pandangan | 75/75/60/70 (Typ.)(CR≥10) |
| tindak balas | 8 (Typ.)(Tr+Td) ms |
| pandangan yang baik di | - |
| mod kerja | TN, Normally White, Transmissive |
| kedalaman warna | 262K 70% NTSC |
| lampu latar | 12S4P WLED , 50K hours , With LED Driver |
| jisim | 280g |
| digunakan untuk | Industrial |
| kadar segar semula | 60Hz |
| skrin sentuh | Without |
| jenis isyarat | LVDS (1 ch, 6-bit) , 20 pins Connector |
| bekalan voltan | 3.3V (Typ.) |
| maks. penilaian | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
