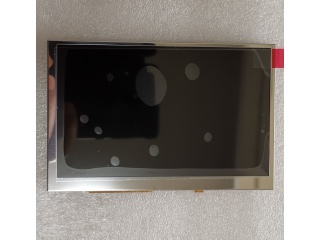

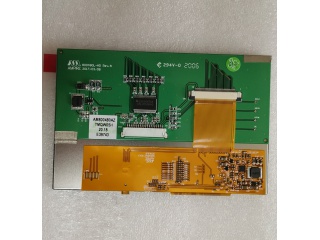

| Nombor Bahagian | AM-800480AZTMQW-05H |
| Jenama | AMPIRE |
| Saiz | 5.0 |
| Permohonan | Industrial |
| Resolusi | 800×480 |
| Komposisi | a-Si TFT-LCD, LCM |
| Kecerahan | |
| CR | 600:1 |
| Warna | 262K |
| Lampu latar | WLED |
| Antara muka | |
| jenama | AMPIRE |
| model | AM-800480AZTMQW-05H |
| saiz pepenjuru | 5.0 inch |
| menaip | a-Si TFT-LCD, LCM |
| format piksel | 800(RGB)×480 [WVGA] 188PPI |
| konfigurasi | RGB Vertical Stripe |
| kawasan aktif | 108(H)×64.8(V) mm |
| garis besar malap. | 118.5(H)×77.1(V) ×7.41(D) mm |
| kawasan bezel | 110.6(H)×67.4(V) mm |
| rawatan | - |
| kecerahan | 500 cd/m² (Typ.) |
| nisbah kontras | 600:1 (Typ.) (TM) |
| arah pandang | - |
| masa tindak balas | 2/6 (Typ.)(Tr/Td) |
| sudut pandangan | 75/75/70/60 (Typ.)(CR≥10) |
| mod operasi | TN, Normally White, Transmissive |
| warna sokongan | 262K 47% NTSC |
| sumber cahaya | WLED [3S7P] , 30K hours , With LED Driver |
| berat badan | - |
| direka untuk | Industrial |
| kadar bingkai | 60Hz |
| panel sentuh | Without |
| Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
