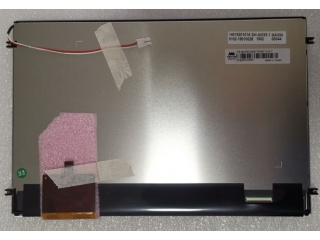

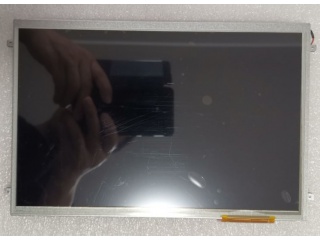

| Nombor Bahagian | AM-19201200B1TZQW-T11 |
| Jenama | AMPIRE |
| Saiz | 10.1 |
| Permohonan | Industrial Outdoor H |
| Resolusi | 1920×1200 |
| Komposisi | a-Si TFT-LCD , LCM |
| Kecerahan | |
| CR | 800:1 |
| Warna | 16.7M |
| Lampu latar | 7S6P |
| Antara muka | |
| jenama panel | AMPIRE |
| saiz panel | 10.1" |
| resolusi | 1920(RGB)×1200, WUXGA, 224PPI |
| kawasan paparan | 216.806(W)×135.504(H) mm |
| saiz garis besar | 243.45(W)×155.2(H) ×7.86(D) mm |
| kecerahan | 850 cd/m² (Typ.) |
| sudut pandangan | 85/85/85/85 (Typ.)(CR≥10) |
| pandangan terbaik pada | Symmetry |
| warna paparan | 16.7M 53% NTSC |
| kekerapan | 60Hz |
| berat badan | - |
| model panel | AM-19201200B1TZQW-T11 |
| jenis panel | a-Si TFT-LCD , LCM |
| format piksel | RGB Vertical Stripe |
| pembukaan bezel | - |
| permukaan | - |
| nisbah kontras | 800:1 (Typ.) (TM) |
| mod paparan | Normally Black, Transmissive |
| masa tindak balas | 25 (Typ.)(Tr+Td) |
| jenis lampu | 7S6P WLED , 50K hours , Without Driver |
| skrin sentuh | PCAP |
| permohonan | Industrial Outdoor High Brightness |
