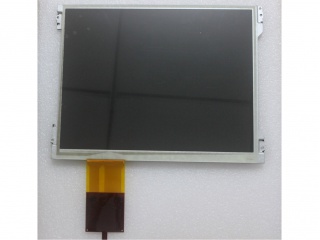

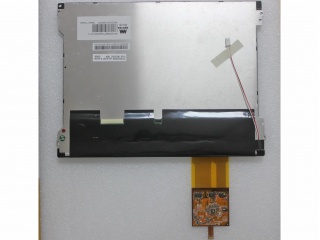

| Nombor Bahagian | AM-1024768R7TNQW-T00H |
| Jenama | AMPIRE |
| Saiz | 12.1 |
| Permohonan | Industrial |
| Resolusi | 1024×768 |
| Komposisi | a-Si TFT-LCD , LCM |
| Kecerahan | |
| CR | 800:1 |
| Warna | 262K/16.7M |
| Lampu latar | 9S3P |
| Antara muka | LVDS |
| jenama panel | AMPIRE |
| saiz panel | 12.1" |
| resolusi | 1024(RGB)×768, XGA, 105PPI |
| kawasan paparan | 245.76(W)×184.32(H) mm |
| saiz garis besar | 279(W)×209(H) ×11.2(D) mm |
| kecerahan | 510 cd/m² (Typ.) |
| sudut pandangan | 80/80/80/80 (Typ.)(CR≥10) |
| pandangan terbaik pada | - |
| warna paparan | 262K/16.7M |
| kekerapan | 60Hz |
| berat panel | - |
| antara muka isyarat | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
| voltan masukan | 3.3V (Typ.) |
| persekitaran | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
| model panel | AM-1024768R7TNQW-T00H |
| jenis panel | a-Si TFT-LCD , LCM |
| format piksel | RGB Vertical Stripe |
| pembukaan bezel | - |
| permukaan | - |
| nisbah kontras | 800:1 (Typ.) (TM) |
| mod paparan | TN, Normally White, Transmissive |
| masa tindak balas | 16 (Typ.)(Tr+Td) |
| jenis lampu | 9S3P WLED , 50K hours , Without Driver |
| skrin sentuh | PCAP |
| permohonan | Industrial |
| AM-1024768M2TMQW-T00H | AMPIRE | 9.7 | 1024×768 |
| AM-1024768MTMQW-00H | AMPIRE | 10.4 | 1024×768 |
| AM-1024768RTNQW-00H | AMPIRE | 12.0 | 1024×768 |
| B121EW08 V0 | AUO | 12.1 | 1280×800 |
| B121EW10 V1 | AUO | 12.1 | 1280×800 |
| G121I1-L01 | Innolux | 12.1 | 1280×800 |
| LB121S03-TL01 | LG Display | 12.1 | 800×600 |
| LTD121EXSS | TOSHIBA | 12.1 | 1280×800 |
| LTM12C278F | TOSHIBA | 12.1 | 800×600 |
| M121MNS1 R0 | IVO | 12.1 | 800×600 |
